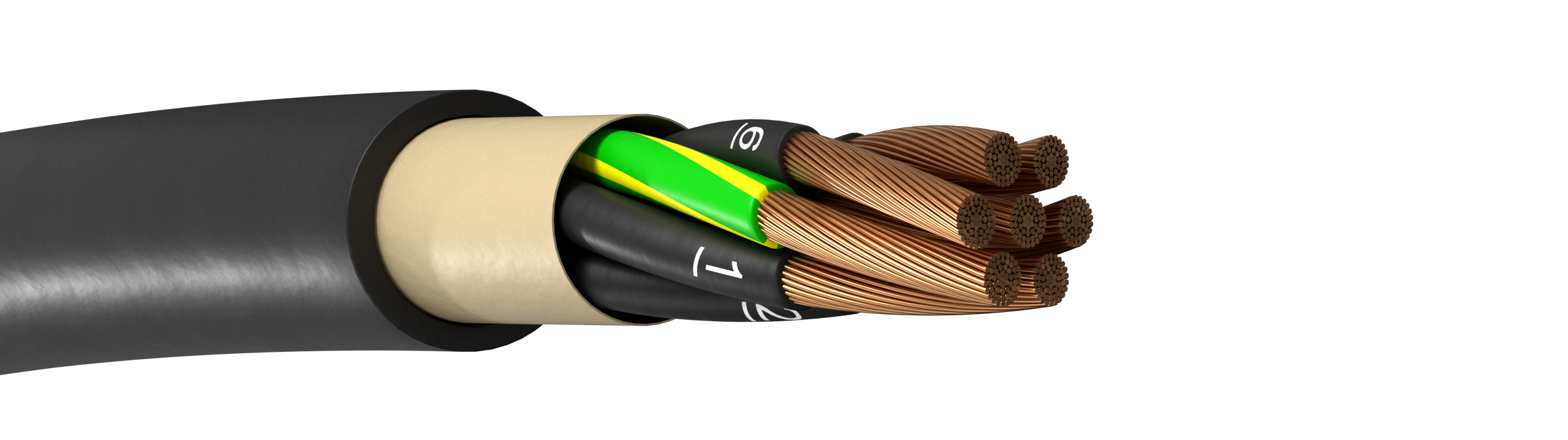

Bit 1000 H

UV-resistant halogen free control and power cable 0,6/1 kV
  • Halogen free
  • Oil resistant
  • UV-resistant
  • Direct burial
  • Sillicon free(during production)
  • Flame retardant
  • Self-extingguishing
  • Low smoke
  • CPR, Dca
Create product sheet (PDF)
Questions/Order

Flexible halogen free power- and controlcable. Intended for use in industrial devices, technological lines and machines. In dry and damp rooms, especially in applications with increased fire safety requirements. Also for unprotected outdoor use and direct burial. Cables classified acc. to EN 50575 (CPR.

Standard:
VDE 0295, EN 60228 cl. 5
Approvals:
RoHS 2002/95/WE, CE (LVD 2006/95/WE)
Rated Voltage Uo/U:
0,6/1kV
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
Halogen free special compound
Core identification:
Black with white numerals
Protective conductor:
Yellow/Green
Outer sheath:
Halogen free special compound
Sheat colour:
Black
Bending radius fixed:
6 x cable diameter
Bending radius moved:
10 x cable thickness
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+70°C
Testing voltage:
4000V
Halogen-free / Smoke emission:
IEC 60 754-1 & IEC 60 754-2
Smoke emission:
IEC 61034-2
Burning behavior CPR:
Dca-s2,d2,a1
Flame retardant:
IEC 60332-1, IEC 60332-3-24
Manufacturer:
Bitner
