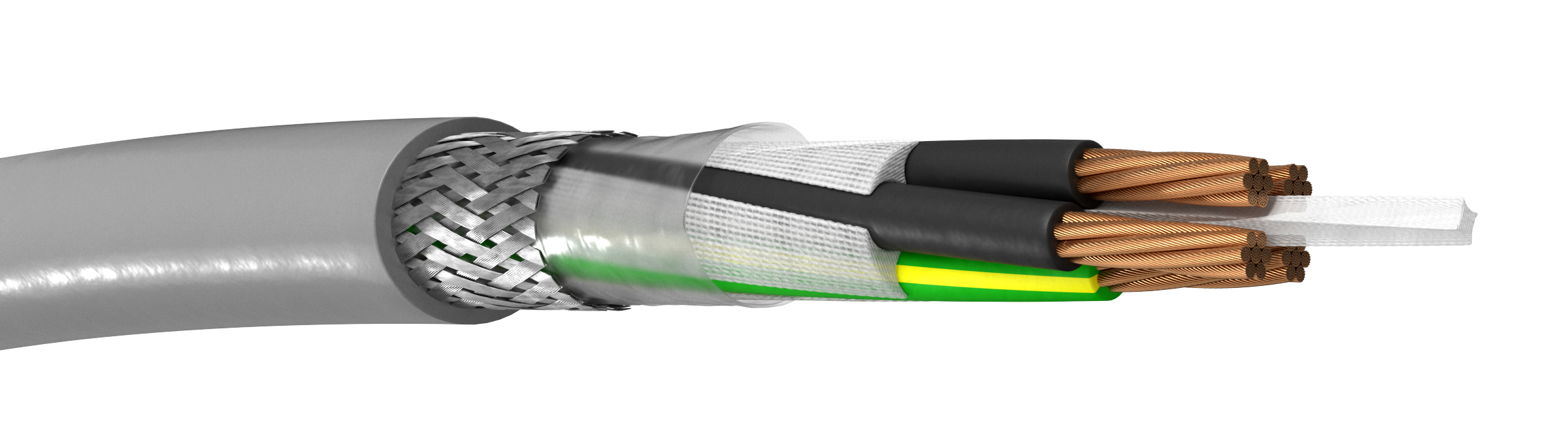

FR style 21179/2587-ST
PVC-sheathed copper shielded (EMC) control cable UL/CSA
Standard:
UL1581, 758; CSA C22.2 n° 210
Approvals:
UL/CSA AWM
Rated Voltage acc to. UL/CSA:
1000V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Black with white numerals
Protective conductor:
Yellow/Green
Overall shield:
Braided tinned copper wire
Shield coverage:
≥85%
Outer sheath:
PVC
Sheat colour:
Grey
Bending radius fixed:
4 x cable diameter
Bending radius moved:
15 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+90°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+80°C
Lowest installation temperature:
-5°C
Testing voltage:
6000V
