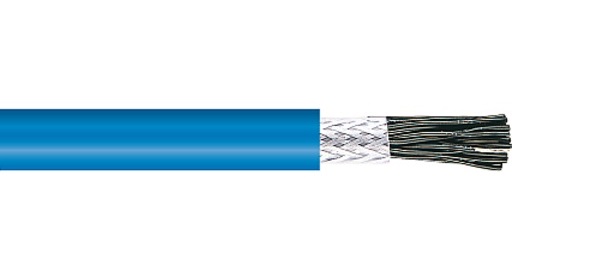

LIYCY-EB
Control cable for use in self-protective circuits.
- For intrinsically safe electric circuits
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Black with white numerals
Overall shield:
Braided tinned copper wire
Shield coverage:
>85%
Outer sheath:
PVC
Sheat colour:
Blue RAL 5015
Bending radius fixed:
5 x cable diameter
Bending radius moved:
10 x cable diameter
Min operating temperature fixed:
-30°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+70°C
Testing voltage:
3000V
Capacitance:
ca 120nF/km (core/core) ca 160nF/km (core/shield)
Inductance:
approx. 0,65 mH/km
Flame retardant:
IEC 60332-1
