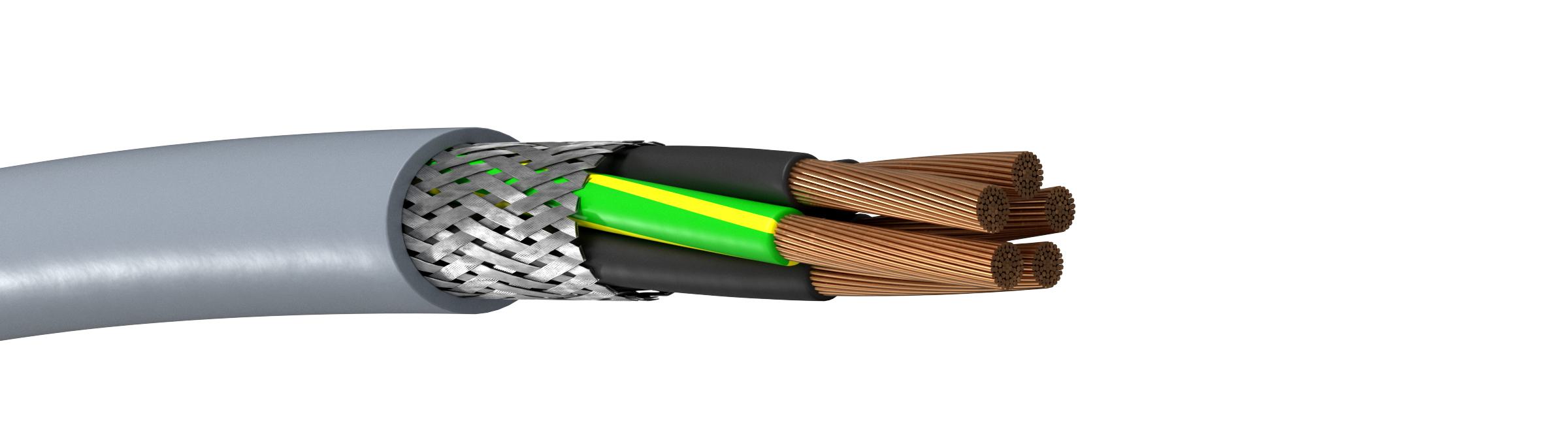

Novoflex Compact CY
PVC-sheathed copper shielded (EMC) control cable
Standard:
VDE 0295, IEC 60228
Approvals:
Complies to Swedish and European standard acc. to SS EN 60204
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Black with white numerals
Protective conductor:
Yellow/Green
Fabric lapping:
PETP-foil
Overall shield:
Braided tinned copper wire
Outer sheath:
Special PVC
Sheat colour:
Grey RAL 7001
Bending radius fixed:
6 x cable diameter
Bending radius moved:
15 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-15°C
Max operating temperature moved:
+70°C
Testing voltage:
2000V
Insulation resistance:
≥20 MOhm x km at +20°C
Flame retardant:
IEC 60332-1
