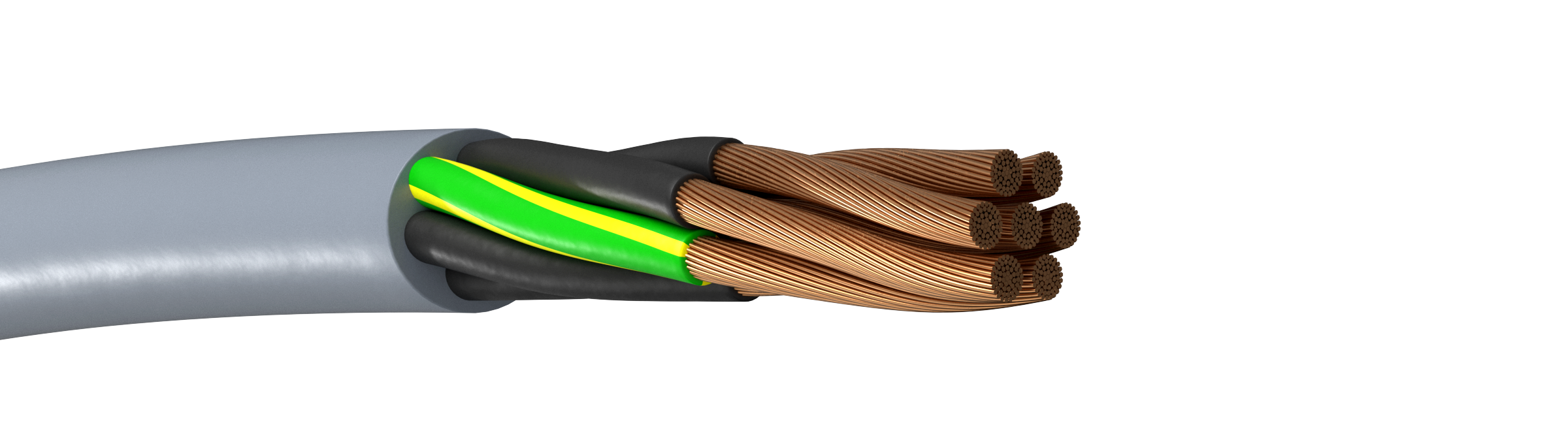

Novoflex N-PUR
PUR-sheathed UV-resistant control cable
Standard:
VDE 0295
Approvals:
Complies to Swedish and European standard acc. to SS EN 60204
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Black with white numerals
Protective conductor:
Yellow/Green
Outer sheath:
Oil- and UV-resistant PUR
Sheat colour:
Grey RAL 7001
Bending radius fixed:
4 x cable diameter
Bending radius moved:
15 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+70°C
Testing voltage:
3000V
Flame retardant:
IEC 60332-1
