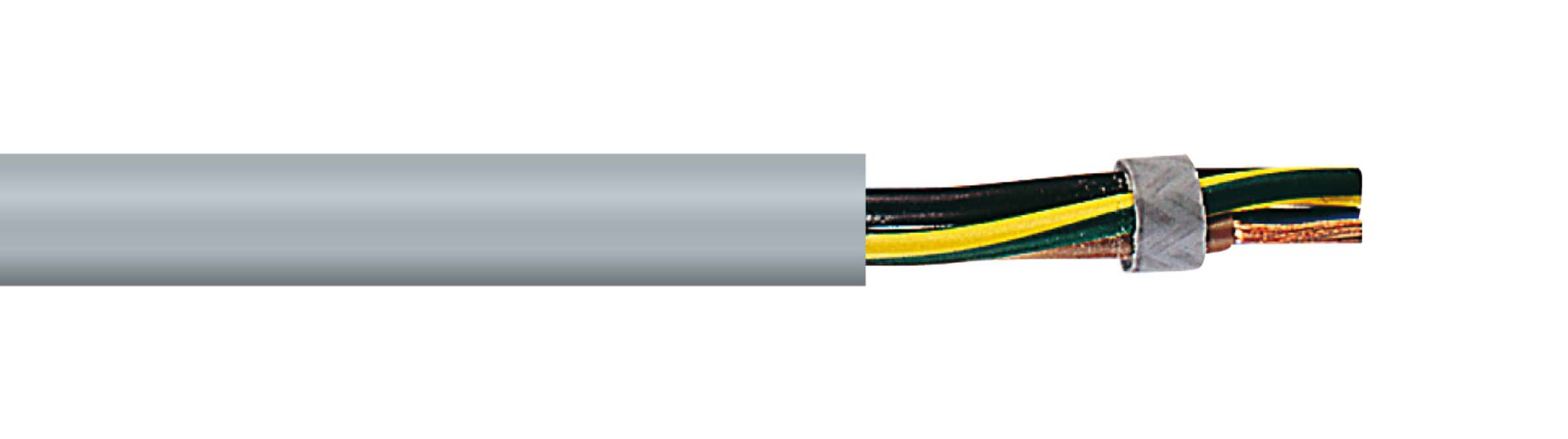

Novoflex N-UL (H)05VV5-F 2-N UL/CSA
PVC-sheathed control cable UL/CSA
- 4 (6)
- 5 (2)
- 4 (2)
- 6 (2)
- 10 (1)
- 16 (1)
- 25 (1)
- 35 (1)
- Yes (8)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N7916040 | 4G4(AWG12) | 12.5 | 29.8 |
| N7916050 | 5G4(AWG12) | 13.3 | 35.8 |
| N7917040 | 4G6(AWG10) | 14.2 | 40.2 |
| N7917050 | 5G6(AWG10) | 15.9 | 48.4 |
| N7918040 | 4G10(AWG8) | 17.4 | 65.3 |
| N7919040 | 4G16(AWG6) | 21.9 | 104.5 |
| N7919140 | 4G25(AWG4) | 25.6 | 150.1 |
| N7919240 | 4G35(AWG2) | 29.5 | 212.3 |
Standard:
VDE 0295, IEC 60228, HD21.13 S1, VDE 0281 T13; UL Style 2517/2587 och CSA C22.2 Nr. 210.2-M90
Approvals:
Complies to Swedish and European standard acc. to SS EN 60204, UL-AWM version 2587; CSA-AWM I A/B II A/B
Rated Voltage Uo/U:
300/500V
Rated Voltage acc to. UL/CSA:
600V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Black with white numerals
Protective conductor:
Yellow/Green
Outer sheath:
Special PVC
Sheat colour:
Grey RAL 7001
Bending radius fixed:
4 x cable diameter
Bending radius moved:
12,5 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+90°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+90°C
Testing voltage:
3000V
Insulation resistance:
≥20 MOhm x km
Flame retardant:
IEC 60332-1, UL1581 VW1, CSA FT1
