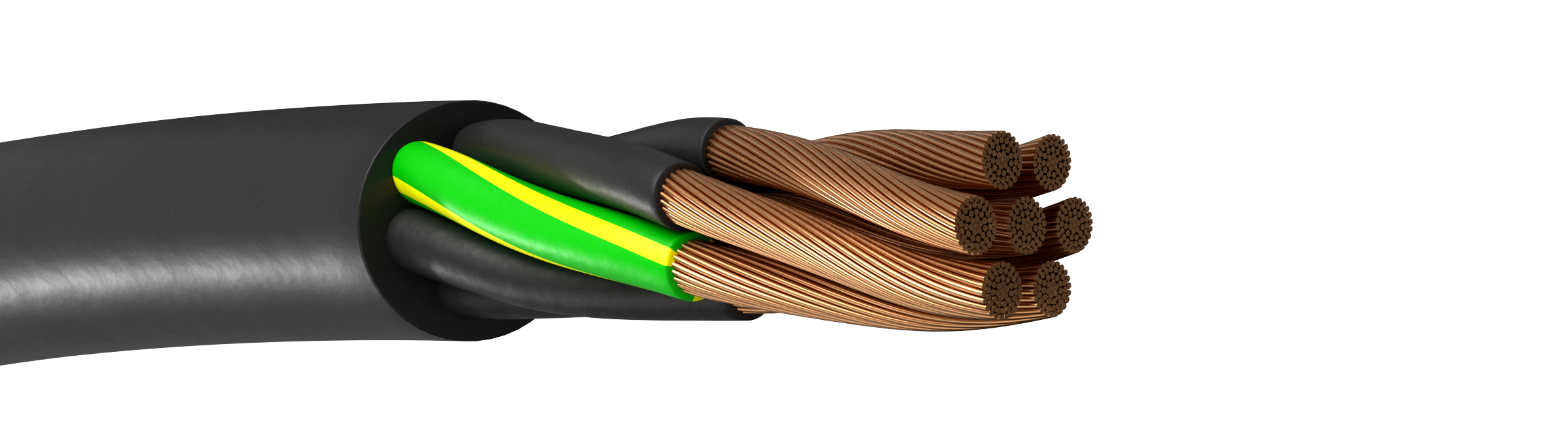

Novoflex N-UV
Flexible UV-resistant control cable
Standard:
VDE 0295
Approvals:
Complies to Swedish and European standard acc. to SS EN 60204
Rated Voltage Uo/U:
0,6/1kV
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Black with white numerals
Protective conductor:
Yellow/Green
Outer sheath:
Special PVC
Sheat colour:
Black
Bending radius fixed:
7,5 x cable diameter
Bending radius moved:
20 x cable diameter
Min operating temperature fixed:
-30°C
Max operating temperature fixed:
+70°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+70°C
Testing voltage:
3500V
Insulation resistance:
≥20 MOhm x km
Flame retardant:
IEC 60332-1
