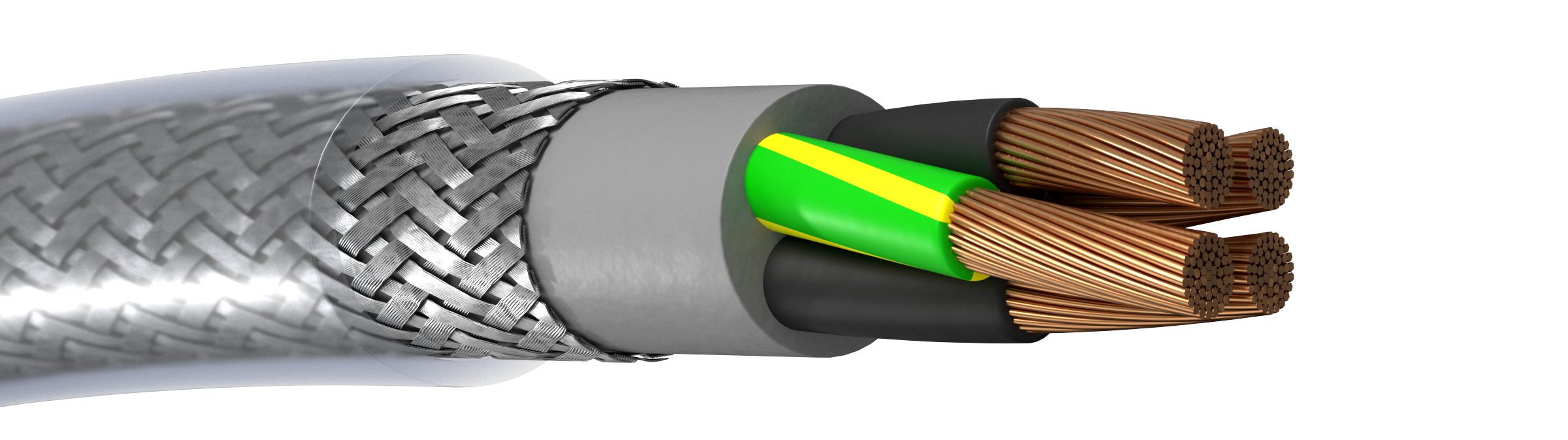

Novoflex NCY
PVC-sheathed copper shielded (EMC) control cable
Standard:
VDE 0295, 0293
Approvals:
Complies to Swedish and European standard acc. to SS EN 60204
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Black with white numerals, ≥25mm²: Colour coded
Protective conductor:
Yellow/Green
Inner sheath material:
PVC
Overall shield:
Braided tinned copper wire
Outer sheath:
PVC
Sheat colour:
Transparent
Bending radius fixed:
6 x cable diameter
Bending radius moved:
20 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+70°C
Min operating temperature moved:
-15°C
Max operating temperature moved:
+70°C
Testing voltage:
4000V
Flame retardant:
IEC 60332-1
