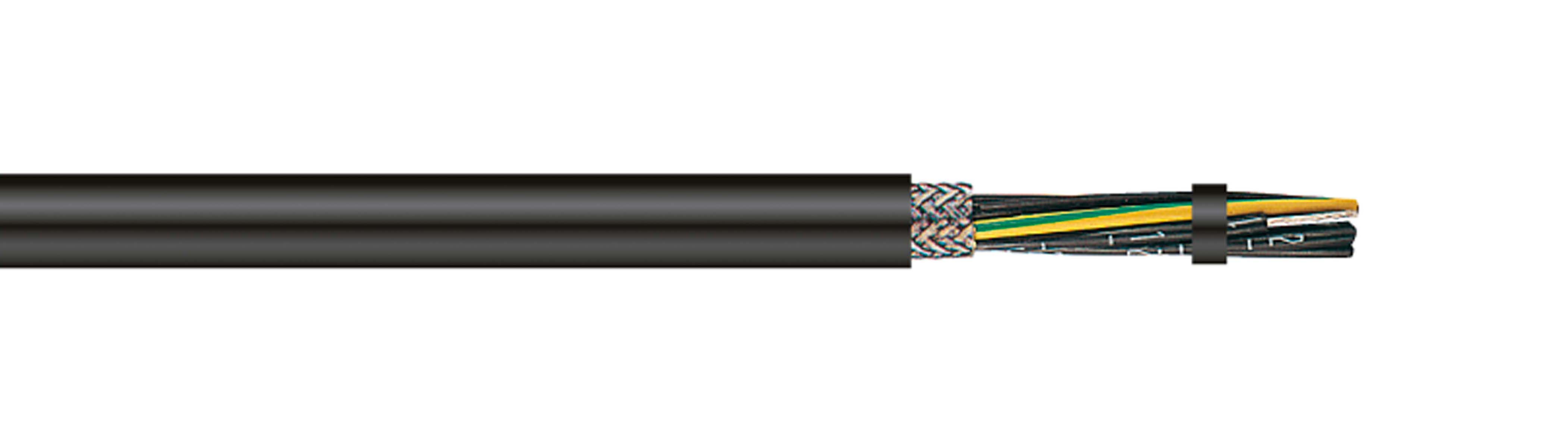

Novoflex NCY-UV-UL 2-N UL/CSA
Shielded UV-resistant control cable UL/CSA 0,6/1kV
Standard:
IEC 60828, DIN-EN 50290-2-22, UL 1581, CSA FT1, UL VW1, CEI 20-22 II, NBN C30-004 CAT F2
Approvals:
UL/CSA: cULus-90°C/ 1000V, VDE
Rated Voltage Uo/U:
300/500V
Rated Voltage acc to. UL/CSA:
1000V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Black with white numerals
Protective conductor:
Yellow/Green
Overall shield:
Braided tinned copper wire
Shield coverage:
Approx. 85%
Outer sheath:
PVC
Sheat colour:
Black RAL 9005
Bending radius fixed:
4 x cable diameter
Bending radius moved:
20 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+90°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+90°C
Testing voltage:
6000V
Conductor resistance:
See technical appendix
Flame retardant:
IEC 60332-3-24
