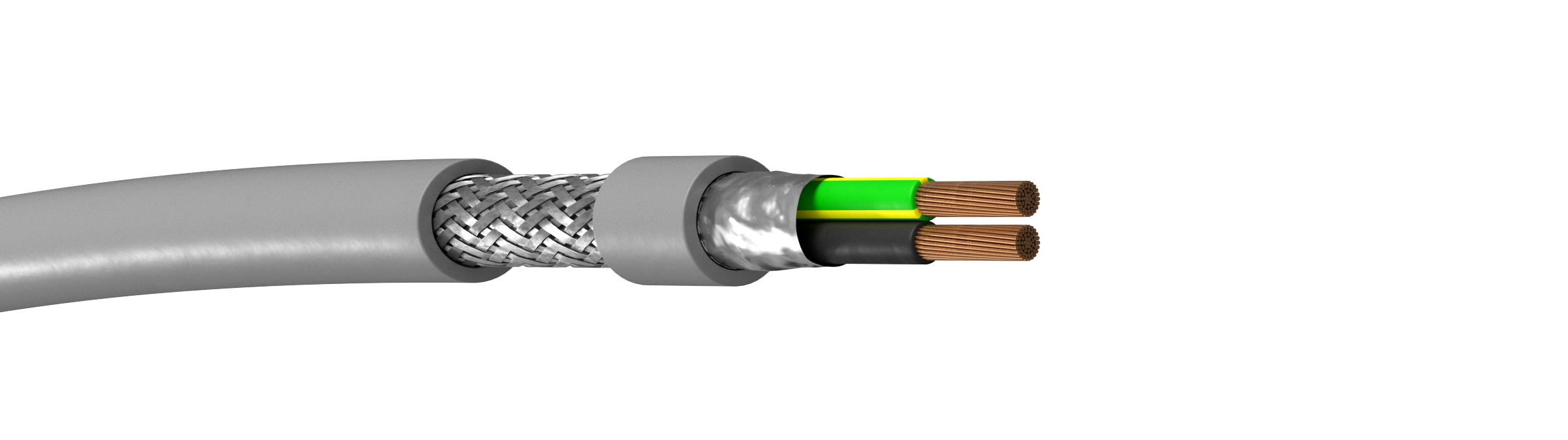

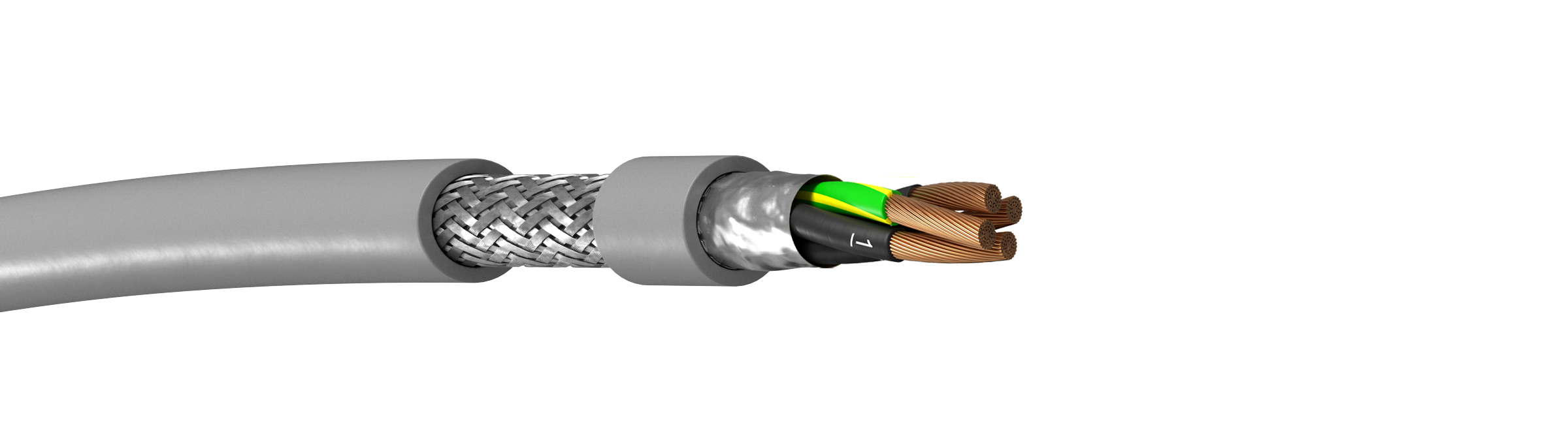

Novosafe N(st)CH
Halogen free copper shielded (EMC) control cable
Standard:
VDE 0295, 0293
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
Halogen free special compound
Core identification:
Black with white numerals
Protective conductor:
Yellow/Green
Overall shield:
Aluminum foil and braided tinned copper wire
Outer sheath:
Halogen free special compound
Sheat colour:
Grey
Bending radius fixed:
6 x cable diameter
Bending radius moved:
12 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-15°C
Max operating temperature moved:
+70°C
Testing voltage:
3000V
Oil resistance:
IEC 60811-404 70° 4 hours
Halogen-free / Smoke emission:
IEC 60 754-1 & IEC 60 754-2
Halogen-free acc. to:
IEC 60754
Smoke emission:
IEC 61034
Burning behavior CPR:
Cca
Flame retardant:
IEC 60332-3-24
Manufacturer:
Kabeltec GmbH
