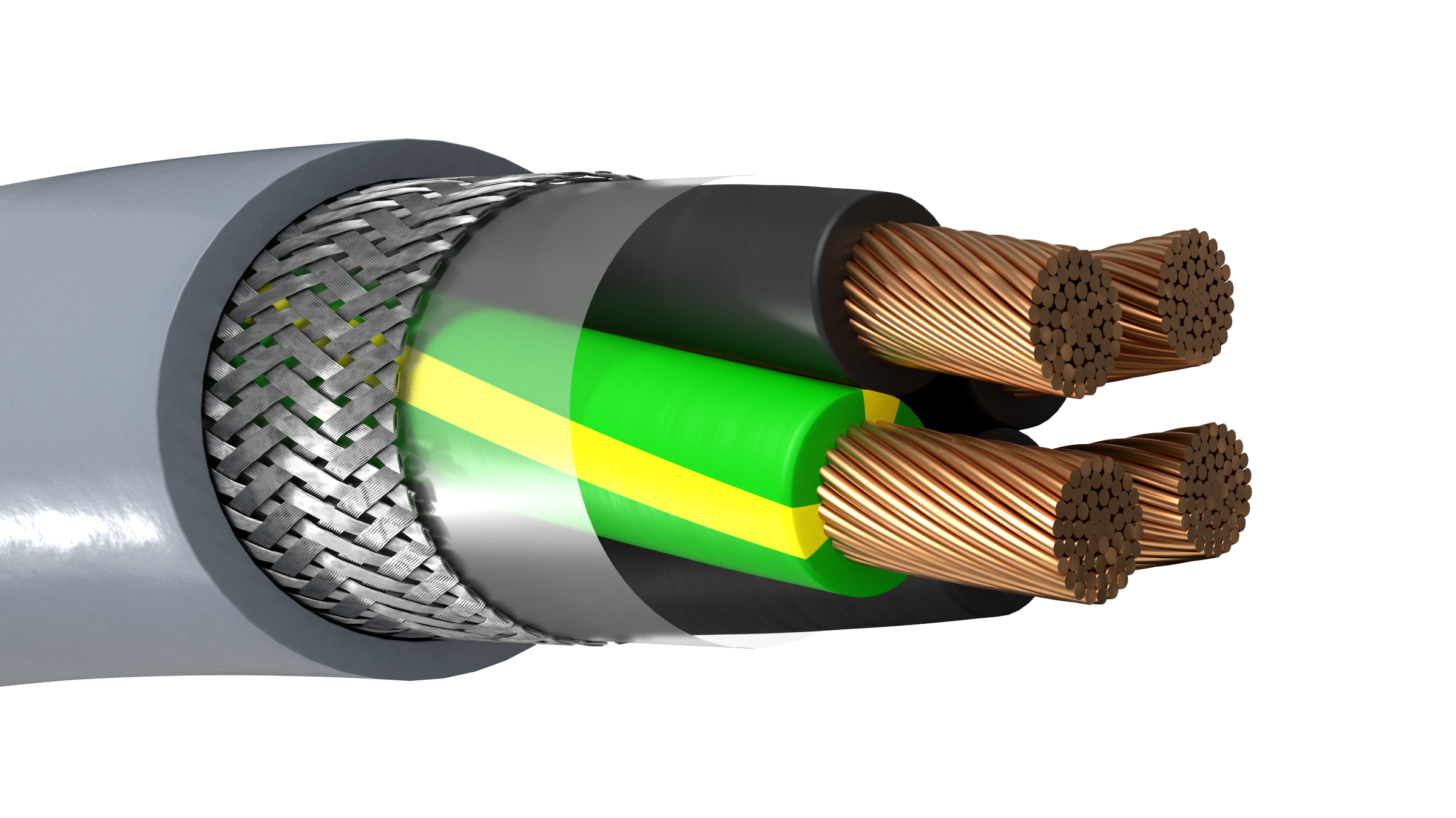

Novosafe NCH
Halogen free copper shielded (EMC) control cable
Standard:
VDE 0295, 0293
Approvals:
Complies to Swedish and European standard acc. to SS EN 60204
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
Halogen free special compound
Core identification:
Black with white numerals
Protective conductor:
Yellow/Green
Fabric lapping:
Foil PETP
Overall shield:
Braided tinned copper wire
Shield coverage:
Approx. 85%
Outer sheath:
Halogen free special compound
Sheat colour:
Grey RAL 7001
Bending radius fixed:
5 x cable thickness
Bending radius moved:
10 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+70°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+70°C
Testing voltage:
3000V
Halogen-free / Smoke emission:
IEC 60 754-1 & IEC 60 754-2
Halogen-free acc. to:
IEC 60754
Smoke emission:
IEC 61034-2
Flame retardant:
IEC 60332-3-24
