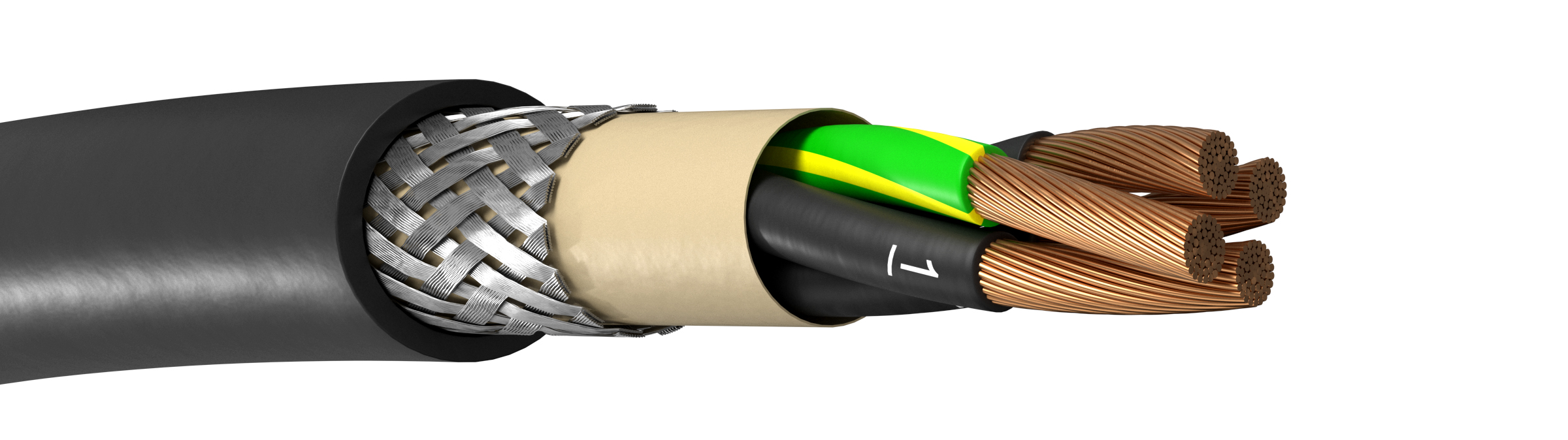

Novosafe NCH-UV
UV-resistant halogen free copper shielded (EMC) control and power cable 0,6/1 kV
Standard:
VDE 0295, IEC 60228 cl. 5
Approvals:
Complies to Swedish and European standard acc. to SS EN 60204, RoHS 2002/95/WE, CE (LVD 2006/95/WE)
Rated Voltage Uo/U:
0,6/1kV
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
Halogen free special compound
Core identification:
Black with white numerals
Protective conductor:
Yellow/Green
Inner sheath material:
Halogen free specialmix
Overall shield:
Braided tinned copper wire
Shield coverage:
≥85%
Outer sheath:
Halogen free special compound
Sheat colour:
Black
Bending radius fixed:
8 x cable diameter
Bending radius moved:
12 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+80°C
Testing voltage:
4000V
Halogen-free / Smoke emission:
IEC 60 754-1 & IEC 60 754-2
Smoke emission:
IEC 61034-2
Flame retardant:
IEC 60332-1, IEC 60332-3-24
