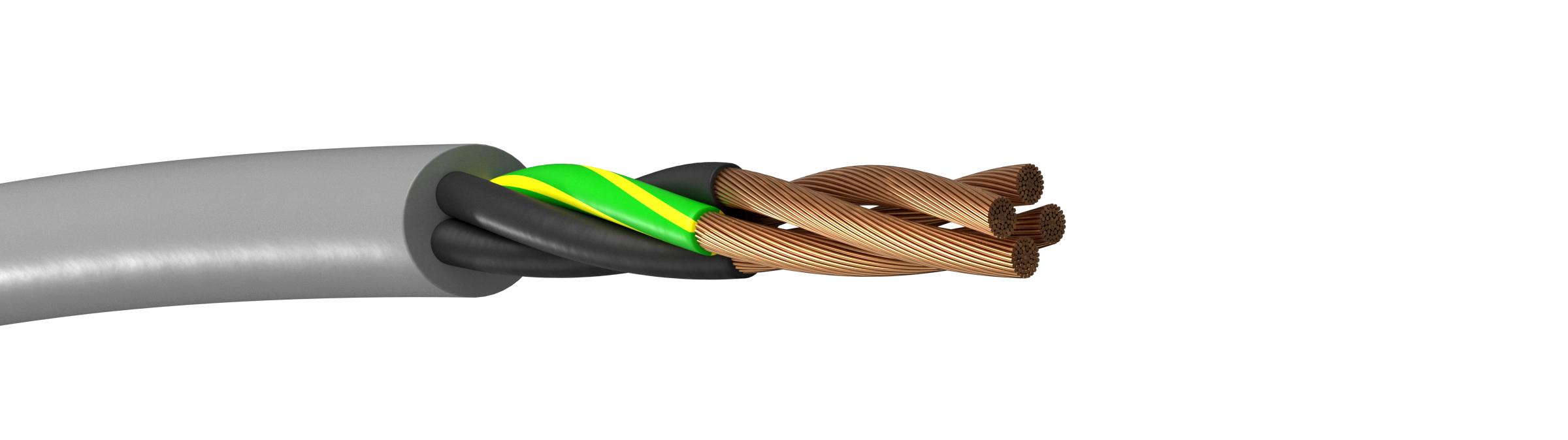

Novosafe NH
Halogen free control cable
Standard:
VDE 0295
Approvals:
Complies to Swedish and European standard acc. to SS EN 60204
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
Halogen free special compound
Core identification:
Black with white numerals, ≥35mm²: Colour coded
Protective conductor:
Yellow/Green
Outer sheath:
Halogen free special compound
Sheat colour:
Grey RAL 7001
Bending radius fixed:
4 x cable diameter
Bending radius moved:
15 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+70°C
Min operating temperature moved:
-15°C
Max operating temperature moved:
+70°C
Testing voltage:
4000V
Oil resistance:
IEC 60811-404 70° 4 hours
Halogen-free / Smoke emission:
IEC 60 754-1 & IEC 60 754-2
Smoke emission:
IEC 61034-2
Burning behavior CPR:
Dca-s2,d2,a1
Flame retardant:
IEC 60332-3-24
Manufacturer:
Kabeltec GmbH
