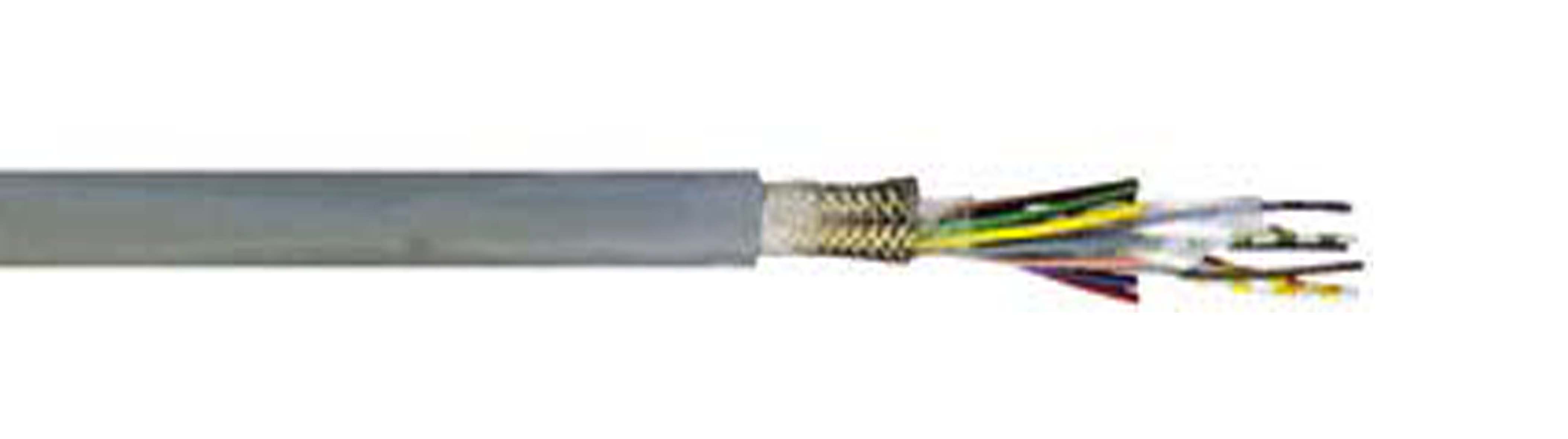

Novoflex 6430 SK-C PUR
Highly flexible PUR sheathed electronic cable
- 2 (3)
- 3 (3)
- 4 (3)
- 5 (3)
- 7 (3)
- 10 (3)
- 14 (3)
- 18 (3)
- 25 (3)
- 0.14 (9)
- 0.25 (9)
- 0.34 (9)
- No (27)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N7971020 | 2x0,14 | 4.5 | 2.3 |
| N7971030 | 3x0,14 | 4.7 | 2.5 |
| N7971040 | 4x0,14 | 4.9 | 2.8 |
| N7971050 | 5x0,14 | 5.2 | 3.3 |
| N7971070 | 7x0,14 | 5.8 | 4.1 |
| N7971100 | 10x0,14 | 6.9 | 5.8 |
| N7971140 | 14x0,14 | 7.2 | 6.4 |
| N7971180 | 18x0,14 | 7.8 | 7.8 |
| N7971250 | 25x0,14 | 9.5 | 10.8 |
| N7972020 | 2x0,25 | 4.8 | 2.6 |
| N7972030 | 3x0,25 | 5 | 3.2 |
| N7972040 | 4x0,25 | 5.3 | 3.7 |
| N7972050 | 5x0,25 | 5.6 | 4.3 |
| N7972070 | 7x0,25 | 6.4 | 5.4 |
| N7972100 | 10x0,25 | 7.7 | 8.1 |
| N7972140 | 14x0,25 | 8 | 9.3 |
| N7972180 | 18x0,25 | 8.8 | 12.4 |
| N7972250 | 25x0,25 | 10.5 | 16.5 |
| N7973020 | 2x0,34 | 5.1 | 3.1 |
| N7973030 | 3x0,34 | 5.4 | 37 |
| N7973040 | 4x0,34 | 5.7 | 4.2 |
| N7973050 | 5x0,34 | 6 | 5.1 |
| N7973070 | 7x0,34 | 7.1 | 6 |
| N7973100 | 10x0,34 | 8.6 | 10.4 |
| N7973140 | 14x0,34 | 8.7 | 11.8 |
| N7973180 | 18x0,34 | 9.6 | 15 |
| N7973250 | 25x0,34 | 11.7 | 20.5 |
Standard:
VDE 0295, IEC 60228 cl. 6
Approvals:
UL/CSA - cURus 300V, 80°C
Rated Voltage Uo/U:
300/300V
Rated Voltage acc to. UL/CSA:
300V
Conductor class:
Class 6 = extra fine stranded wires
Conductor material:
Copper
Core insulation:
PELON®
Core identification:
Colour coded acc. to DIN 47100
Overall shield:
Braided tinned copper wire
Shield coverage:
>85%
Outer sheath:
PUR
Sheat colour:
Grey
Bending radius fixed:
5 x cable diameter
Bending radius moved:
7,5 x cable diameter
Min operating temperature fixed:
-50°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-40°C
Max operating temperature moved:
+80°C
Halogen-free acc. to:
IEC 60754
Flame retardant:
IEC 60332-1, UL1581 VW1, CSA FT1
