Novoflex 6530 SK-C PUR

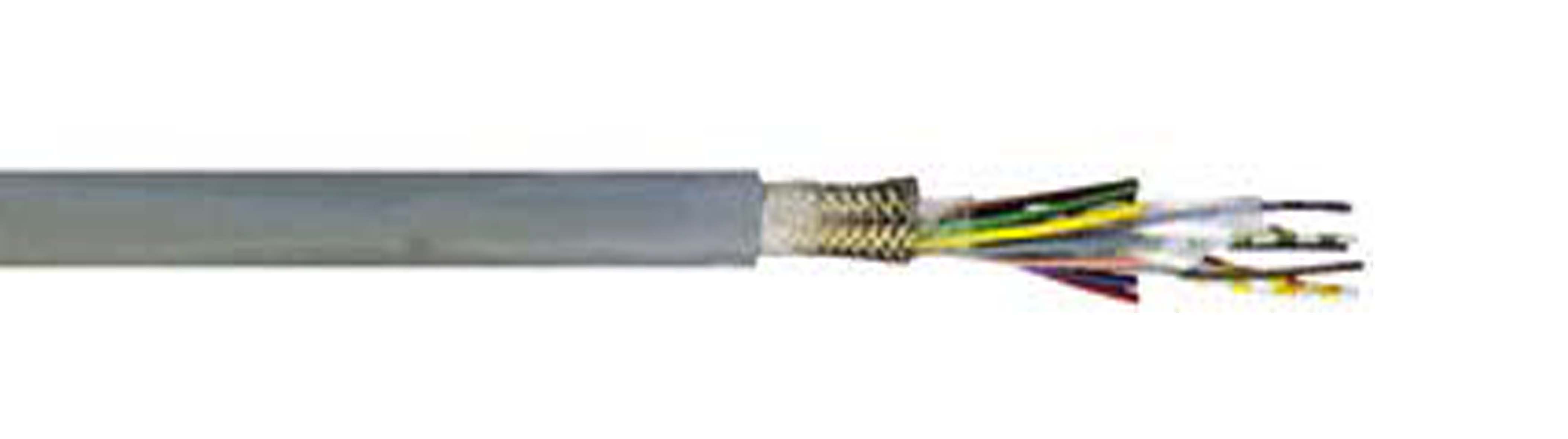

Highly flexible PUR sheathed, twisted-pair electronic cable

Create product sheet (PDF)

Questions/Order

Standard:

VDE 0295, IEC 60228 cl. 6

Approvals:

UL/CSA - cURus 300V, 80°C

Rated Voltage Uo/U:

300/300V

Rated Voltage acc to. UL/CSA:

300V

Conductor class:

Class 6 = extra fine stranded wires

Conductor material:

Copper

Core insulation:

PELON®

Core identification:

Colour coded acc. to DIN 47100

Overall shield:

Braided tinned copper wire

Shield coverage:

>85%

Outer sheath:

PUR

Sheat colour:

Grey

Bending radius fixed:

5 x cable diameter

Bending radius moved:

7,5 x cable diameter

Min operating temperature fixed:

-50°C

Max operating temperature fixed:

+80°C

Min operating temperature moved:

-40°C

Max operating temperature moved:

+80°C

Halogen-free acc. to:

IEC 60754

Flame retardant:

IEC 60332-1, UL1581 VW1, CSA FT1
