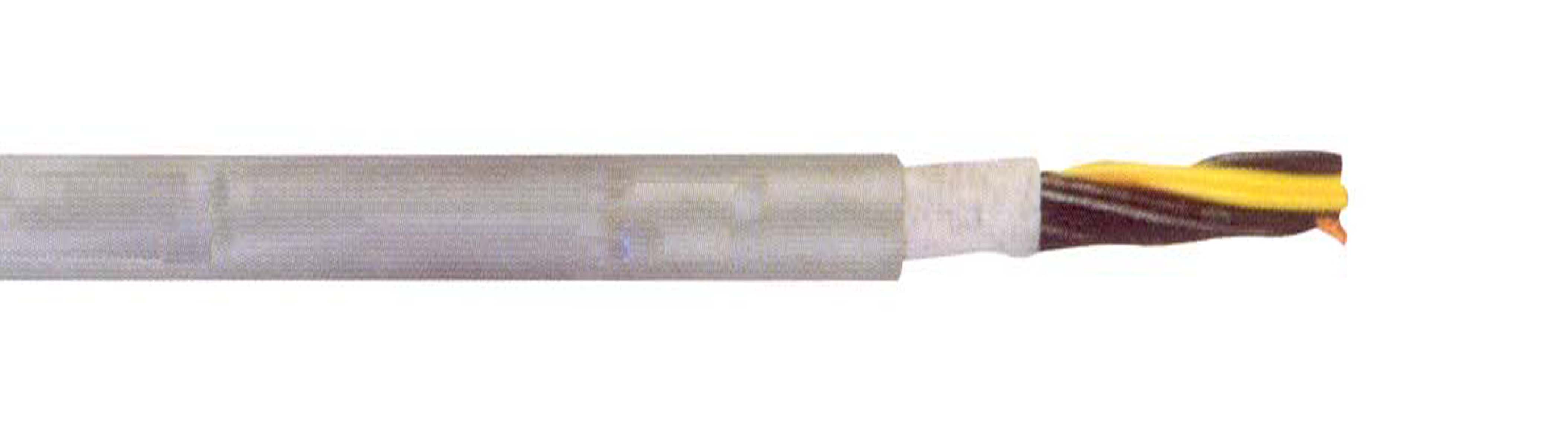

Novoflex HF-N
Highly flexible PVC-sheathed drag chain cable
- 3 (3)
- 4 (3)
- 5 (3)
- 7 (3)
- 12 (3)
- 18 (3)
- 25 (3)
- 0.75 (7)
- 1 (7)
- 1.5 (7)
- Yes (21)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| 0284110 | 3G0,75 | 6 | 6.1 |
| 0284120 | 4G0,75 | 6.5 | 7.7 |
| 0284130 | 5G0,75 | 7.2 | 9.2 |
| 0284140 | 7G0,75 | 8.7 | 13.2 |
| 0284150 | 12G0,75 | 10.5 | 18.8 |
| 0284170 | 18G0,75 | 12.6 | 29.3 |
| 0284180 | 25G0,75 | 15 | 39.9 |
| 0284210 | 3G1,0 | 6.4 | 7.4 |
| 0284220 | 4G1,0 | 6.8 | 9.2 |
| 0284230 | 5G1,0 | 7.8 | 11.6 |
| 0284240 | 7G1,0 | 9.5 | 16.4 |
| 0284250 | 12G1,0 | 11.2 | 23.4 |
| 0284270 | 18G1,0 | 13.6 | 36.3 |
| 0284280 | 25G1,0 | 16 | 50 |
| 0284310 | 3G1,5 | 7 | 9.3 |
| 0284320 | 4G1,5 | 7.8 | 11.7 |
| 0284330 | 5G1,5 | 8.7 | 14.8 |
| 0284340 | 7G1,5 | 10.7 | 21 |
| 0284350 | 12G1,5 | 12.6 | 30.4 |
| 0284370 | 18G1,5 | 15.3 | 47.9 |
| 0284380 | 25G1,5 | 18.3 | 66.6 |
Standard:
VDE 0295, EN 60228 cl. 5/6
Approvals:
Complies to Swedish and European standard acc. to SS EN 60204 and UL/CSA
Rated Voltage Uo/U:
300/500V
Conductor class:
≤25 conductors Klass 5 = mångtrådig, ≥26 conductors Class 6 = extra fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Black with white numerals
Protective conductor:
Yellow/Green
Fabric lapping:
Textile lapping
Outer sheath:
Special PVC
Sheat colour:
Grey RAL 7001
Bending radius moved:
10 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+90°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+90°C
Testing voltage:
4000V
Insulation resistance:
≥20 MOhm x km at +20°C
Flame retardant:
IEC 60332-1
