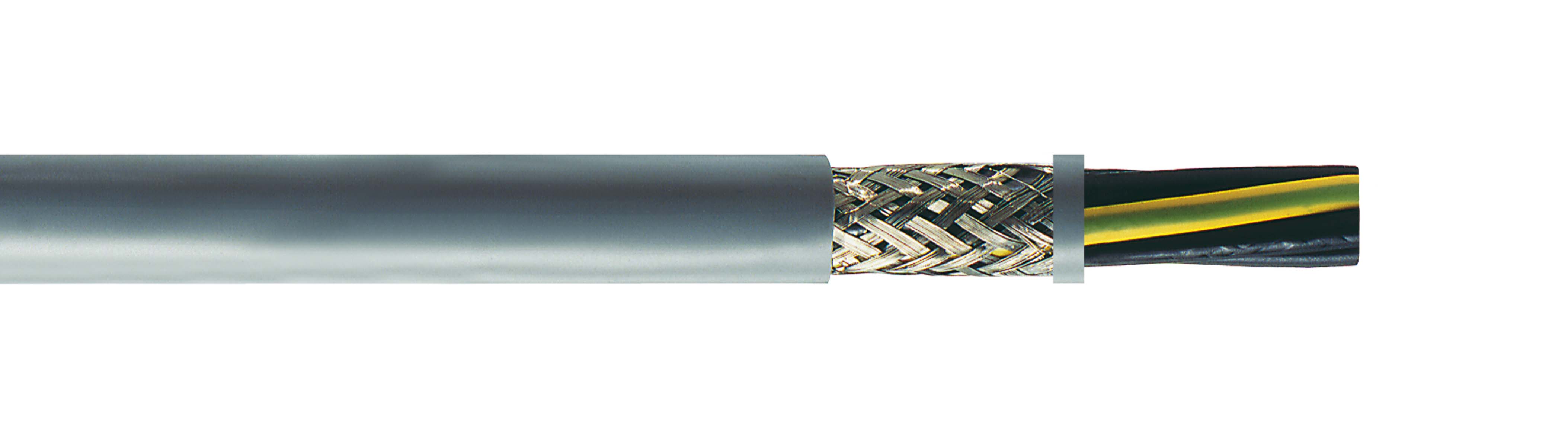

Novoflex HF-NCY
Highly flexible PVC-sheathed copper shielded (EMC) drag chain cable
- 3 (2)
- 4 (3)
- 5 (3)
- 7 (3)
- 12 (3)
- 18 (3)
- 25 (3)
- 0.75 (7)
- 1 (7)
- 1.5 (6)
- Yes (20)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| 0284410 | 3G0,75 | 6.6 | 10.5 |
| 0284420 | 4G0,75 | 7.1 | 13 |
| 0284430 | 5G0,75 | 8 | 15.7 |
| 0284440 | 7G0,75 | 9.5 | 20.7 |
| 0284450 | 12G0,75 | 11.1 | 27.4 |
| 0284470 | 18G0,75 | 13.4 | 43 |
| 0284480 | 25G0,75 | 15.8 | 55.4 |
| 0284510 | 3G1,0 | 7 | 12.2 |
| 0284520 | 4G1,0 | 7.6 | 15.7 |
| 0284530 | 5G1,0 | 8.4 | 17.9 |
| 0284540 | 7G1,0 | 10.1 | 24.3 |
| 0284550 | 12G1,0 | 12 | 34.2 |
| 0284570 | 18G1,0 | 14.4 | 49.8 |
| 0284580 | 25G1,0 | 17 | 67 |
| 0284620 | 4G1,5 | 8.4 | 18.4 |
| 0284630 | 5G1,5 | 9.5 | 22.3 |
| 0284640 | 7G1,5 | 11.3 | 29.8 |
| 0284650 | 12G1,5 | 13.4 | 42.1 |
| 0284670 | 18G1,5 | 16.3 | 63.7 |
| 0284680 | 25G1,5 | 19.3 | 86.4 |
Standard:
VDE 0295, EN 60228 cl. 5/6
Approvals:
Complies to Swedish and European standard acc. to SS EN 60204
Rated Voltage Uo/U:
300/500V
Conductor class:
≤25 conductors Klass 5 = mångtrådig, ≥26 conductors Class 6 = extra fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Black with white numerals
Protective conductor:
Yellow/Green
Overall shield:
Braided tinned copper wire
Outer sheath:
Special PVC
Sheat colour:
Grey RAL 7001
Bending radius fixed:
4 x cable diameter
Bending radius moved:
10 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+90°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+90°C
Testing voltage:
4000V
Insulation resistance:
≥20 MOhm x km at +20°C
Flame retardant:
IEC 60332-1
