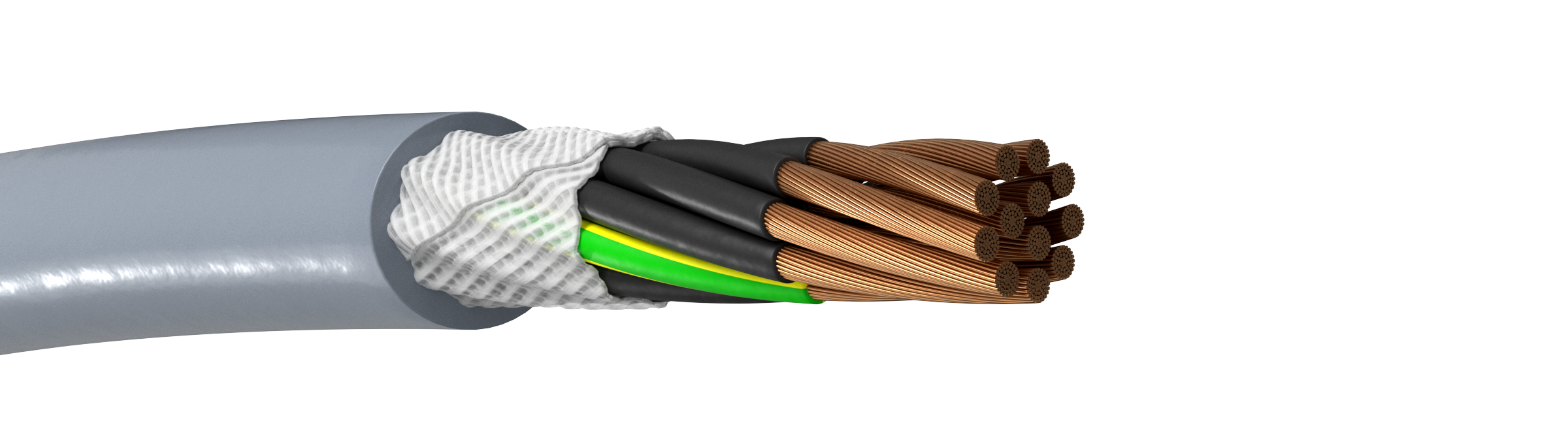

Novoflex SF-N-PUR

Super flexible PUR-sheathed drag chain cable

Standard:

VDE 0295, IEC 60228 cl. 6

Approvals:

Complies to Swedish and European standard acc. to SS EN 60204

Rated Voltage Uo/U:

300/500V (4-16mm² 0,6/1kV)

Conductor class:

Class 6 = extra fine stranded wires

Conductor material:

Copper

Core insulation:

Polyolefin

Core identification:

Black with white numerals

Protective conductor:

Yellow/Green

Outer sheath:

PUR

Sheat colour:

Grey

Bending radius fixed:

4 x cable diameter

Bending radius moved:

7,5 x cable diameter

Min operating temperature fixed:

-50°C

Max operating temperature fixed:

+80°C

Min operating temperature moved:

-40°C

Max operating temperature moved:

+80°C

Testing voltage:

4000V

Insulation resistance:

≥20 MOhm/km

Halogen-free acc. to:

IEC 60754

Flame retardant:

IEC 60332-1
