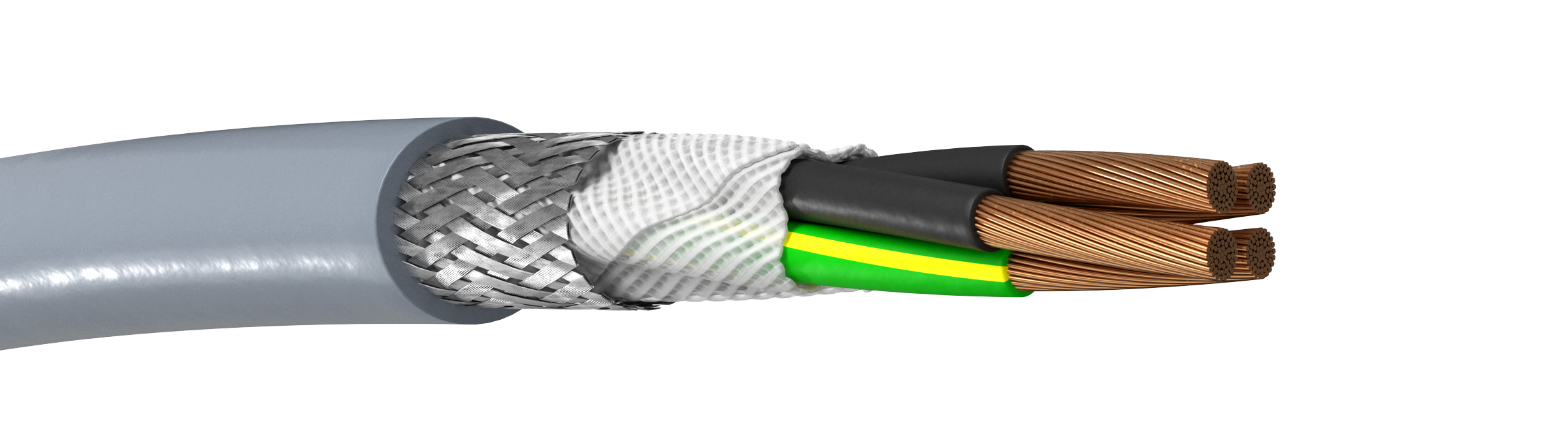

Novoflex SF-NCY-PUR
Super flexible PUR-sheathed copper shielded (EMC) drag chain cable
Standard:
VDE 0295, IEC 60228 cl. 6
Approvals:
Complies to Swedish and European standard acc. to SS EN 60204
Rated Voltage Uo/U:
300/500V (4-16mm² 0,6/1kV)
Conductor class:
Class 6 = extra fine stranded wires
Conductor material:
Copper
Core insulation:
TPE
Core identification:
Black with white numerals
Protective conductor:
Yellow/Green
Overall shield:
Braided tinned copper wire
Outer sheath:
PUR
Sheat colour:
See table
Bending radius fixed:
4 x cable diameter
Bending radius moved:
10 x cable diameter
Min operating temperature fixed:
-50°C (4-16mm² -40°C)
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-40°C (4-16mm² -35°C)
Max operating temperature moved:
+80°C
Testing voltage:
2000V (4-16mm² 4000V)
Insulation resistance:
≥20 MOhm x km at +20°C
Flame retardant:
IEC 60332-1
