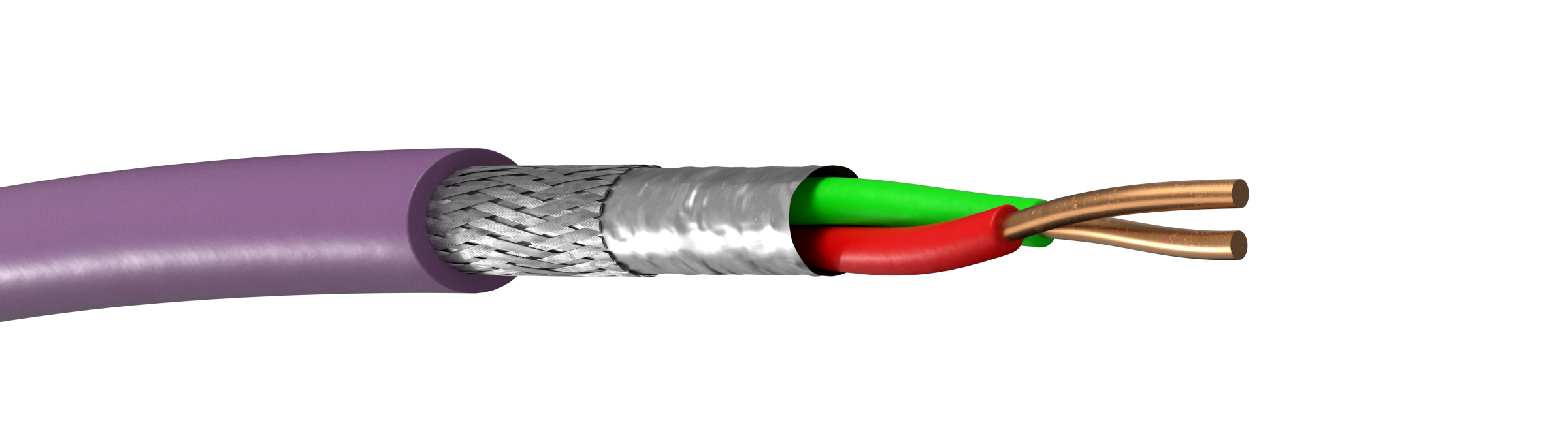

Novotronic Profibus L2-DP/FIP HF
Fieldbus cable for drag chains
Rated Voltage Uo/U control cores:
100V
Conductor class:
19-wire
Conductor material:
Copper
Core insulation:
PE
Core identification:
Red and Green
Overall shield:
Aluminum foil and braided tinned copper wire
Outer sheath:
PUR
Sheat colour:
Violet RAL 4001
Bending radius moved:
65mm
Min operating temperature moved:
-40°C
Max operating temperature moved:
+60°C
Conductor resistance:
max. 133 Ohm/km
Insulation resistance:
≥16 000 Mohm x km
Capacitance:
28,0 nF/km
Inductance:
Nominal value 150 Ohm, 3-20 MHz 150 ±15 Ohm, 38,4 kHz 185 ±18,5 Ohm, 9,6 kHz 270 ±27 Ohm
Attenuation:
at 16 mHz <49 dB/km, at 4 mHz <25 dB/km, at 38,4 mHz <4,0 dB/km, at 9,6 mHz <3,0 dB/km
Flame retardant:
IEC 60332-1
