PMXX

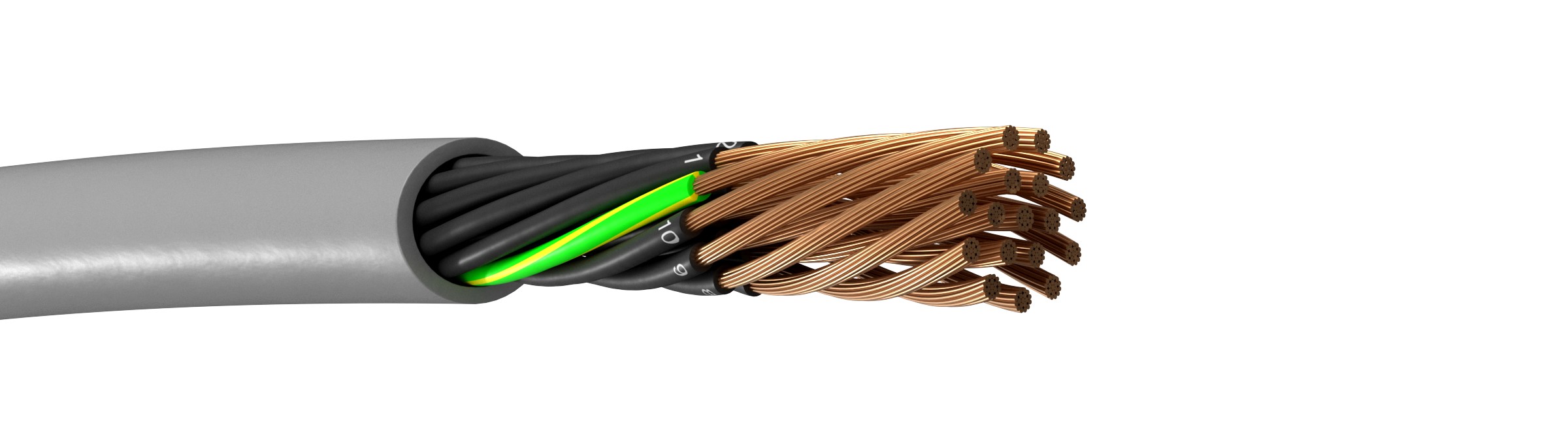

Highly flexible oil-resistant PUR-sheathed UV-resistant drag chain cable. UL/CSA AWM approved.
Create product sheet (PDF)
Questions/Order
Approvals:
UL/CSA AWM
Rated Voltage acc to. UL/CSA:
≤ 1mm² 300V ≥1,5mm² 1000V
Conductor class:
Class 6 = extra fine stranded wires
Conductor material:
Copper
Core insulation:
Polyolefin
Core identification:
Black with white numerals
Protective conductor:
Yellow/Green
Outer sheath:
PUR
Sheat colour:
Grey
Bending radius fixed:
3 x cable diameter
Bending radius moved:
6 x cable diameter
Min operating temperature fixed:
-50°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-40°C
Max operating temperature moved:
+80°C
Oil resistance:
EN 50363-10-2, UL 1581
UV resistant acc. to:
EN 50289-4-17, ASTM-D-2565-16, ISO 4892-2
Halogen-free acc. to:
IEC 60754
Flame retardant:
IEC 60332-1, UL1581 VW1, CSA FT1
