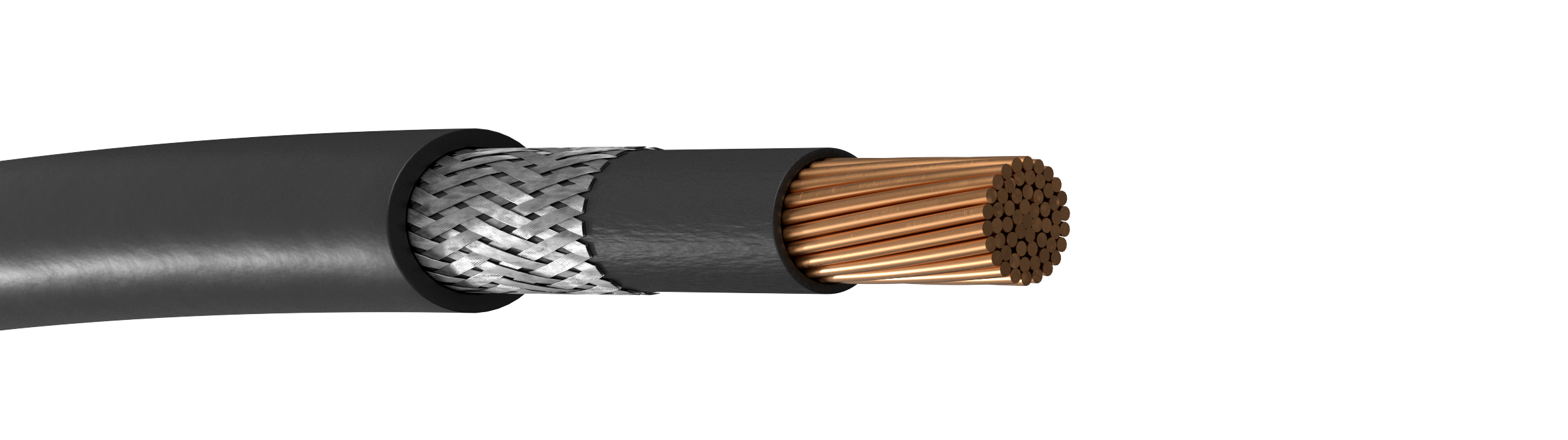

PMXX shielded singlecore

Highly flexible, screened, double insulated, PUR sheathed, UV resistant single conductor for drag chains.
Create product sheet (PDF)
Questions/Order
Standard:
UL1581, 758; CSA C22.2 n° 210
Approvals:
UL/CSA AWM
Rated Voltage acc to. UL/CSA:
1000V
Conductor class:
Class 6 = extra fine stranded wires
Conductor material:
Copper
Core insulation:
Polyolefin
Outer sheath:
PUR
Sheat colour:
Black RAL 9005
Bending radius fixed:
5 x cable diameter
Bending radius moved:
6 x outerdiameter ≤ 16mm², 10 x outerdiameter ≥25mm²
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+90°C
Min operating temperature moved:
-30°C
Max operating temperature moved:
+90°C
Testing voltage:
4000V
Max temperature at conductor:
+90°C
Oil resistance:
EN 50363-10-2, UL 1581
UV resistant acc. to:
EN 50289-4-17, ASTM-D-2565-16, ISO 4892-2
Ozone resistans acc:
EN 50396 art. 8.1.3
Halogen-free acc. to:
IEC 60754
Flame retardant:
IEC 60332-1, UL1581 VW1, CSA FT1
