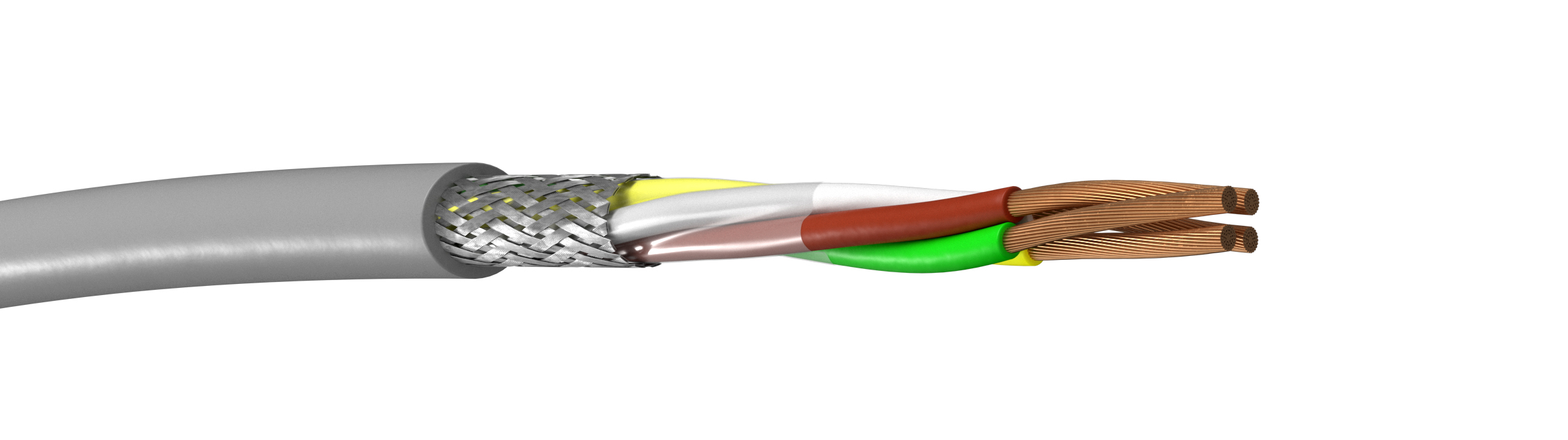

SIgnal FRX-ST
Highly flexible shielded PVC sheathed electronics cable
Approvals:
UL/CSA AWM
Rated Voltage acc to. UL/CSA:
300V
Conductor class:
Class 6 = extra fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Colour coded acc. to DIN 47100
Overall shield:
Braided tinned copper wire
Shield coverage:
≥85%
Outer sheath:
PVC
Bending radius fixed:
6 x cable diameter
Bending radius moved:
7,5 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+80°C
Testing voltage:
2000V
Flame retardant:
IEC 60332-1, UL1581 VW1, CSA FT1
