DMX 512/1990

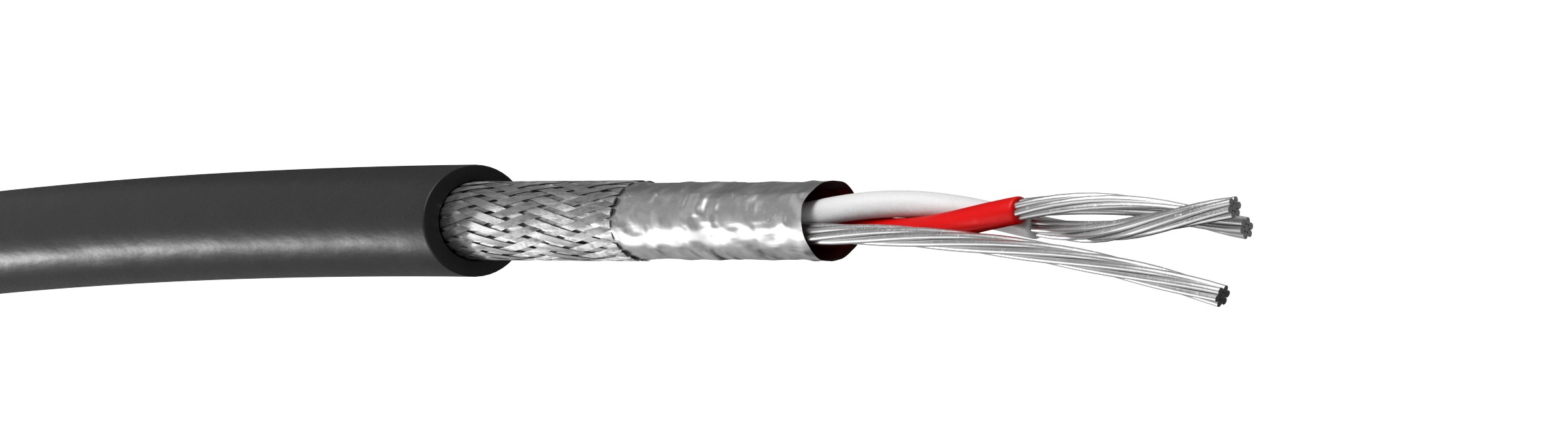

DMX cable
Conductor class:
8-wire
Conductor material:
Tinned Copper
Core insulation:
PE
Core identification:
White, red
Overall shield:
Aluminum foil+tinned drain wire and braided tinned copper wire
Outer sheath:
PVC
Sheat colour:
Black
Min operating temperature fixed:
-30°C
Max operating temperature fixed:
+70°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+70°C
Lowest installation temperature:
-5°C
Capacitance:
60nF/km (core/core) ,115nF/km (lcore/screen)
Impedance:
110 Ω±10
Flame retardant:
IEC 60332-1
