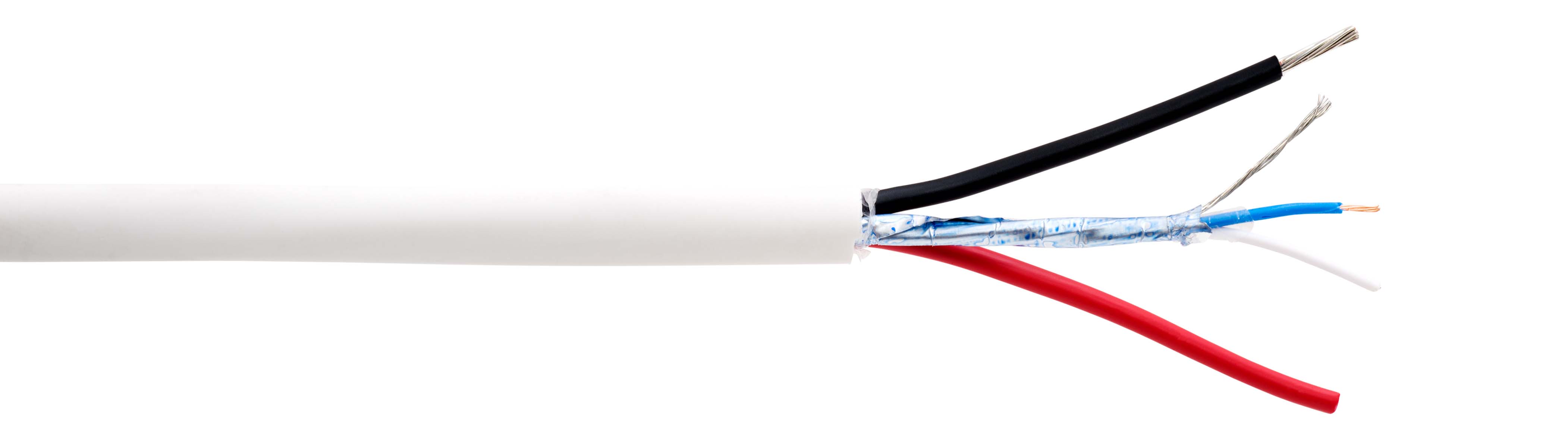

FLAQQBR
Halogen free combined power and signalling cable
Rated Voltage Uo/U:
100V
Conductor class:
Class 2 = stranded wires
Conductor material:
Copper
Core insulation:
Halogen free compund
Core identification:
Colour coded
Fabric lapping:
Foil
Shield control pairs:
Aluminiumfoil with tinned copper drain wire
Outer sheath:
Halogen free mix
Sheat colour:
White
Min operating temperature fixed:
-15°C
Max operating temperature fixed:
+80°C
Lowest installation temperature:
-10°C
Conductor resistance:
0,22mm² max 90 Ohm/km, 1,0mm² max 20,2 Ohm/km
Capacitance:
max. 75 nF/km
Burning behavior CPR:
Dca-s2,d2,a1
Flame retardant:
IEC 60332-1
