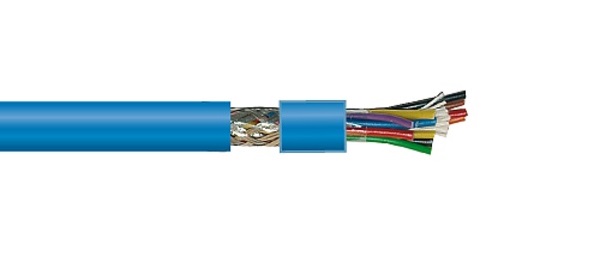

LIYCY-EB-TP
Paired electronic cable for use in self-protective circuits.
- 4 (1)
- 0.75 (1)
- No (4)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N7508430 | 2x2x0,75 | 8.4 | 10.6 |
| N7508440 | 3x2x0,75 | 8.9 | 14 |
| N7508450 | 4x2x0,75 | 10.2 | 17.9 |
| N7508460 | 6x2x0,75 | 12.1 | 24.6 |
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Colour coded acc. to DIN 47100
Overall shield:
Braided tinned copper wire
Shield coverage:
Approx. 85%
Outer sheath:
PVC
Sheat colour:
Blue RAL 5015
Min operating temperature fixed:
-30°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+70°C
Testing voltage:
Core/Core 1500V, Core/Screen 2000V
Flame retardant:
IEC 60332-1
