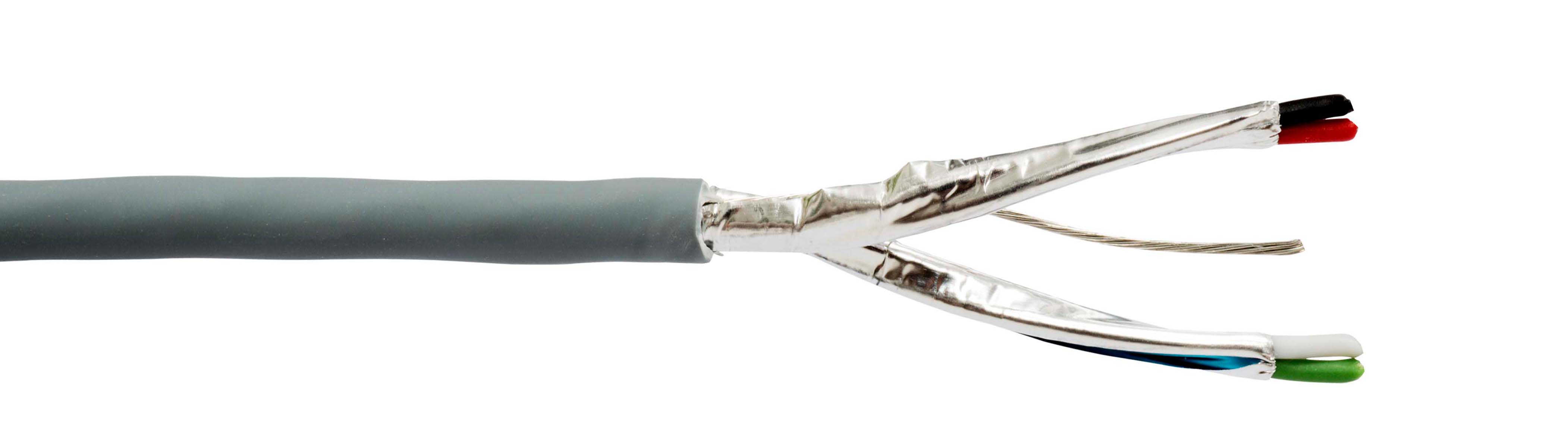

Novotronic 8723NH
Individually screened paired data Cable
- 4 (1)
- 0.35 (1)
- No (1)
| Dimension n x mm² | No of cores x AWG | Outer diameter mm | Weight kg/100m |
| 2x2x0,35 | 2x2xAWG22/7 | 4.2 | 3.2 |
Rated Voltage Uo/U:
450/750V
Conductor material:
Tinned Copper
Core insulation:
Halogen free compund
Core identification:
Colour coded
Pair screen:
Aluminium foil with common tinned drainwire
Outer sheath:
Halogen free mix
Sheat colour:
Grey
Bending radius moved:
10 x cable diameter
Min operating temperature fixed:
-20°C
Max operating temperature fixed:
+70°C
Halogen-free acc. to:
IEC 60754
Smoke emission:
IEC 61034-2
Flame retardant:
IEC 60332-1
