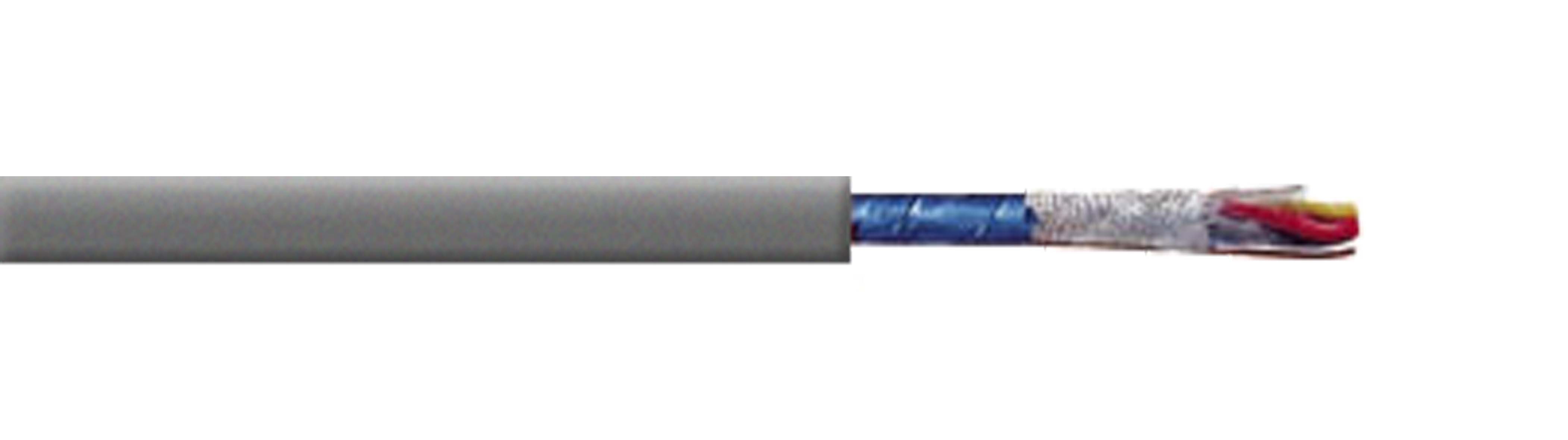

Novotronic J-H(St)H-Bd
Halogen free foil shielded telecommunication cable
- 4 (1)
- 8 (1)
- 12 (1)
- 20 (1)
- 40 (1)
- 60 (1)
- 80 (1)
- 100 (1)
- 120 (1)
- 160 (1)
- 200 (1)
- 0.8 (11)
- No (11)
| E-number | Dimension n x Ø mm | Outer diameter mm | Weight kg/100m |
| N7792020 | 2x2x0,8 | 6.8 | 6.8 |
| N7792040 | 4x2x0,8 | 9.1 | 13.5 |
| N7792060 | 6x2x0,8 | 9.6 | 15 |
| N7792100 | 10x2x0,8 | 11.2 | 23 |
| N7792200 | 20x2x0,8 | 16 | 50 |
| N7792300 | 30x2x0,8 | 17.8 | 59 |
| N7792400 | 40x2x0,8 | 19.5 | 78 |
| N7792500 | 50x2x0,8 | 21.4 | 97 |
| N7792600 | 60x2x0,8 | 23.2 | 110 |
| N7792800 | 80x2x0,8 | 30.1 | 146 |
| N7792990 | 100x2x0,8 | 32 | 180 |
Standard:
VDE 0815
Rated Voltage Uo/U control cores:
300V
Conductor class:
Class 1 = solid wire
Conductor material:
Copper
Core insulation:
Halogen free compund
Core identification:
Colour coded
Fabric lapping:
Polyester foil
Overall shield:
Aluminum/polyester foil with tinned drain wire
Outer sheath:
Halogen free mix
Sheat colour:
Grey RAL 7032
Bending radius fixed:
15 x cable diameter
Min operating temperature fixed:
-30°C
Max operating temperature fixed:
+70°C
Testing voltage:
800V
Insulation resistance:
>100 MOhm x km
Loop resistance:
Ø 0,6mm max, 130 Ohm/km, Ø 0,8mm max 73,2 Ohm/km
Capacitive:
120 nF/km at 800Hz
Flame retardant:
IEC 60332-3-24
