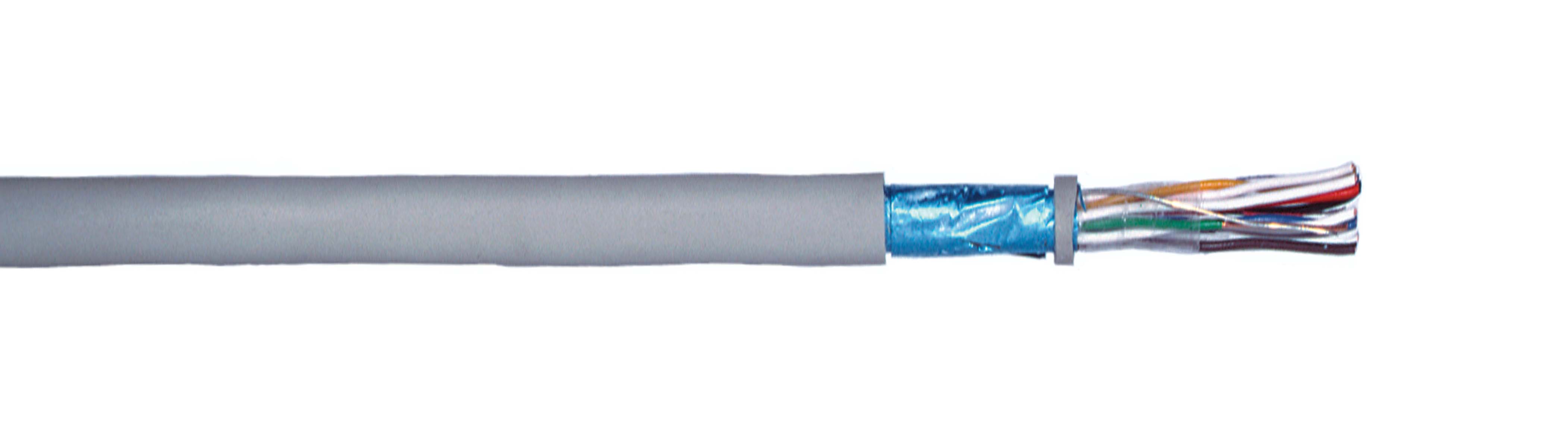

Novotronic J-Y(St)Y-Lg
PVC-sheathed foil shielded telecommunication cable
- 2 (1)
- 4 (1)
- 6 (1)
- 8 (1)
- 10 (1)
- 12 (1)
- 16 (1)
- 20 (1)
- 24 (1)
- 32 (1)
- 40 (1)
- 48 (1)
- 60 (1)
- 80 (1)
- 100 (1)
- 120 (1)
- 160 (1)
- 200 (1)
- 0.8 (18)
- No (18)
| E-number | Dimension n x Ø mm | Outer diameter mm | Weight kg/100m |
| N7822010 | 1x2x0,8 | 5.5 | 3.8 |
| N7822020 | 2x2x0,8 | 6.1 | 5.4 |
| N7822030 | 3x2x0,8 | 8 | 7.7 |
| N7822040 | 4x2x0,8 | 8.7 | 9.4 |
| N7822050 | 5x2x0,8 | 9.4 | 11.4 |
| N7822060 | 6x2x0,8 | 10.1 | 13.5 |
| N7822080 | 8x2x0,8 | 10.2 | 15.4 |
| N7822100 | 10x2x0,8 | 13.1 | 20.5 |
| N7822120 | 12x2x0,8 | 13.5 | 23.5 |
| N7822160 | 16x2x0,8 | 14.8 | 29.9 |
| N7822200 | 20x2x0,8 | 15.6 | 35.2 |
| N7822240 | 24x2x0,8 | 18.4 | 43.7 |
| N7822300 | 30x2x0,8 | 19.4 | 52.2 |
| N7822400 | 40x2x0,8 | 20.9 | 66.3 |
| N7822500 | 50x2x0,8 | 23.7 | 83.2 |
| N7822600 | 60x2x0,8 | 25.8 | 97.8 |
| N7822800 | 80x2x0,8 | 28.8 | 128.8 |
| N7822990 | 100x2x0,8 | 36.5 | 190 |
Standard:
VDE 0815
Rated Voltage Uo/U control cores:
300V
Conductor class:
Class 1 = solid wire
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Colour coded
Fabric lapping:
Polyester foil
Overall shield:
Aluminum/polyester foil with tinned drain wire
Outer sheath:
Special PVC
Sheat colour:
Grey RAL 7032
Bending radius fixed:
15 x cable diameter
Min operating temperature fixed:
-30°C
Max operating temperature fixed:
+70°C
Testing voltage:
800V
Insulation resistance:
>100 MOhm x km
Loop resistance:
Ø 0,6mm max, 130 Ohm/km, Ø 0,8mm max 73,2 Ohm/km
Capacitive:
100 nF/km at 800Hz
Flame retardant:
IEC 60332-1
