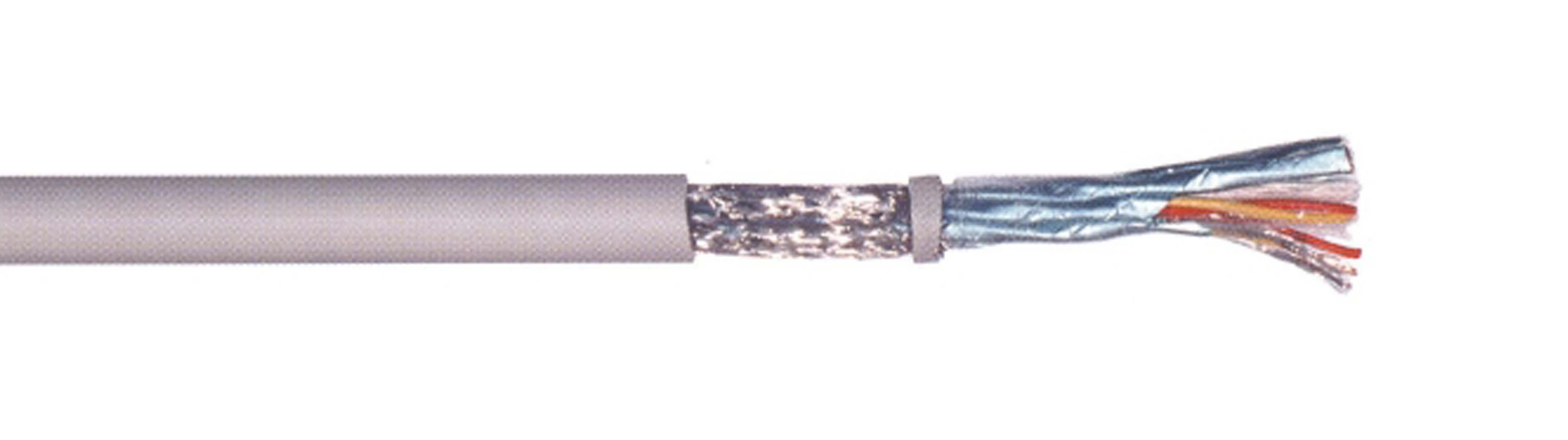

Novotronic Li2YCY-PiMF
PVC-sheathed copper shielded electronic cable with shielded pairs
- 4 (1)
- 8 (3)
- 12 (3)
- 16 (3)
- 20 (2)
- 0.5 (5)
- 0.75 (3)
- 1 (4)
- No (12)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N7772020 | 2x2x0,5 | 10 | 12 |
| N7772040 | 4x2x0,5 | 12.5 | 17.2 |
| N7772060 | 6x2x0,5 | 14.4 | 22.9 |
| N7772080 | 8x2x0,5 | 14.8 | 26.2 |
| N7772100 | 10x2x0,5 | 17.5 | 33.8 |
| N7773040 | 4x2x0,75 | 14 | 20.4 |
| N7773060 | 6x2x0,75 | 16.8 | 29.9 |
| N7773080 | 8x2x0,75 | 17.2 | 35.2 |
| N7774040 | 4x2x1,0 | 16.2 | 29.8 |
| N7774060 | 6x2x1,0 | 18.7 | 38.6 |
| N7774080 | 8x2x1,0 | 19.2 | 47.6 |
| N7774100 | 10x2x1,0 | 22.2 | 56.3 |
Standard:
VDE 0295
Rated Voltage Uo/U control cores:
250V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PE
Core identification:
Yellow and Red with numerals acc. to DIN 47100
Shield control pairs:
Plastic coated metal foil
Overall shield:
Braided tinned copper wire
Outer sheath:
PVC
Sheat colour:
Grey RAL 7032
Bending radius fixed:
15 x cable diameter
Min operating temperature fixed:
-30°C
Max operating temperature fixed:
+70°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+70°C
Testing voltage:
Core/Core 1200V, Core/Screen 500V, Screen/Screen 500V?
Flame retardant:
IEC 60332-1
