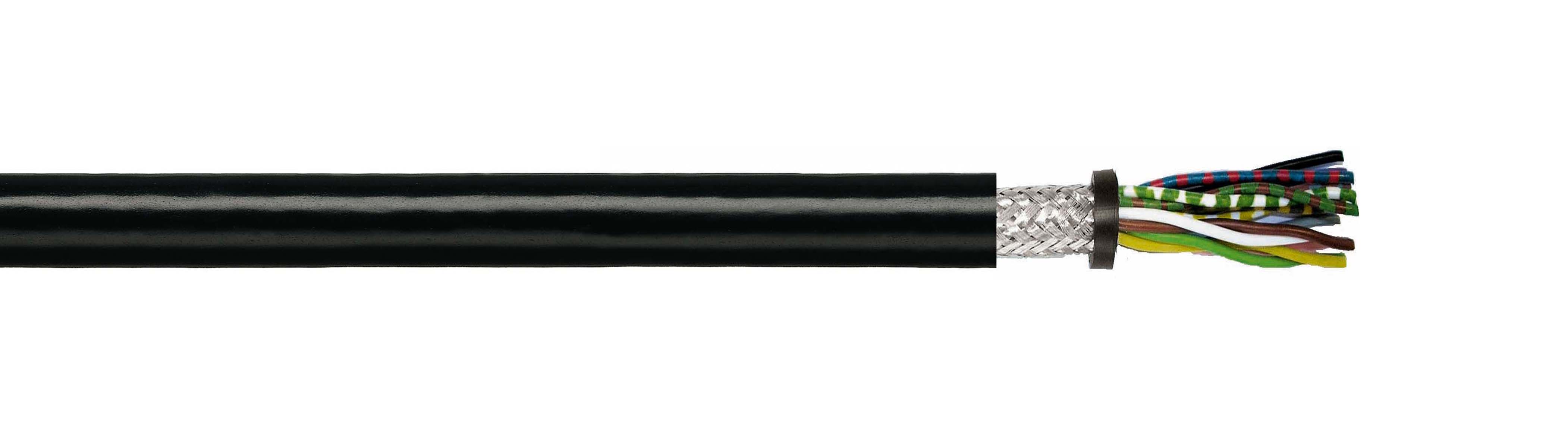

Novotronic Li2YCYv-TP
PVC-sheathed data cable, UV-resistant for underground installation
- 4 (3)
- 8 (3)
- 6 (2)
- 16 (1)
- 20 (1)
- 0.22 (4)
- 0.34 (6)
- 0.5 (10)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N7831020 | 2x2x0,22 | 7.9 | 6.1 |
| N7831040 | 4x2x0,22 | 8.8 | 9.6 |
| N7832020 | 2x2x0,34 | 9.1 | 8.4 |
| N7832030 | 3x2x0,34 | 9.5 | 9.2 |
| N7832040 | 4x2x0,34 | 10.1 | 11.2 |
| N7833020 | 2x2x0,5 | 9.9 | 9.1 |
| N7833030 | 3x2x0,5 | 10.3 | 12.6 |
| N7833040 | 4x2x0,5 | 11.1 | 14.6 |
| N7833080 | 8x2x0,5 | 13.9 | 24.5 |
| N7838100 | 10x2x0,5 | 15.8 | 29.1 |
Rated Voltage Uo/U control cores:
500V
Conductor class:
7-wire
Conductor material:
Copper
Core insulation:
PE
Core identification:
Colour coded acc. to DIN 47100
Overall shield:
Braided tinned copper wire
Outer sheath:
PVC
Sheat colour:
Black RAL 9005
Bending radius fixed:
7,5 x cable diameter
Bending radius moved:
15 x cable diameter
Min operating temperature fixed:
-30°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+70°C
Testing voltage:
2000V
Insulation resistance:
Min. 5 G Ohm x km
Capacitance:
max. 60 nF/km (800Hz)
Inductance:
approx. 0,65 mH/km
Flame retardant:
IEC 60332-1
