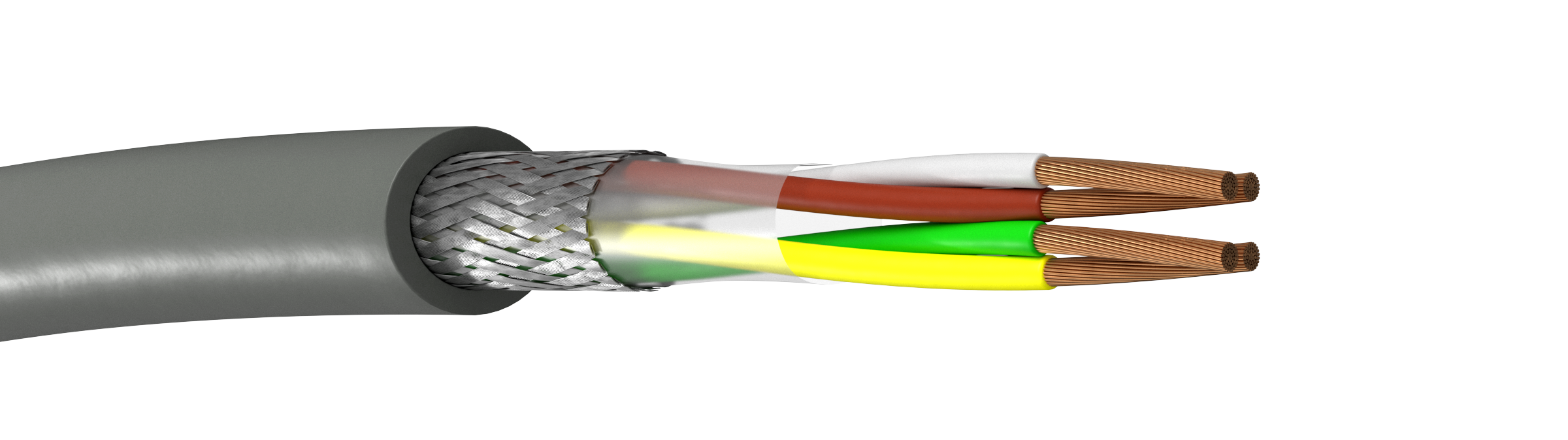

Novotronic LiHCH-TP
Halogen free copper shielded electronic cable with twisted pairs
- 4 (5)
- 6 (5)
- 8 (5)
- 10 (3)
- 12 (5)
- 20 (1)
- 24 (3)
- 0.14 (5)
- 0.25 (7)
- 0.34 (5)
- 0.5 (5)
- 0.75 (5)
- No (27)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N8160020 | 2x2x0,14 | 5.5 | 3.7 |
| N8160030 | 3x2x0,14 | 6.2 | 4.7 |
| N8160040 | 4x2x0,14 | 7.4 | 6.6 |
| N8160050 | 5x2x0,14 | 8 | 7.6 |
| N8160060 | 6x2x0,14 | 8.3 | 8.7 |
| 4855300 | 2x2x0,25 | 6 | 4.4 |
| 4855310 | 3x2x0,25 | 7 | 6.6 |
| 4855320 | 4x2x0,25 | 7.9 | 8.1 |
| N8161050 | 5x2x0,25 | 8.6 | 9.8 |
| 4855330 | 6x2x0,25 | 9 | 11.6 |
| N8161100 | 10x2x0,25 | 10.7 | 15.3 |
| N8161120 | 12x2x0,25 | 12.1 | 17.5 |
| N8162020 | 2x2x0,34 | 7.2 | 6.8 |
| N8162030 | 3x2x0,34 | 8.5 | 9.2 |
| N8162040 | 4x2x0,34 | 9.5 | 11 |
| N8162050 | 5x2x0,34 | 10 | 12.8 |
| N8162060 | 6x2x0,34 | 10.6 | 14.7 |
| 4855360 | 2x2x0,5 | 7.7 | 7.6 |
| 4855370 | 3x2x0,5 | 9 | 10.7 |
| 4855380 | 4x2x0,5 | 10.2 | 13.4 |
| 4855390 | 6x2x0,5 | 11.5 | 17.6 |
| N8163120 | 12x2x0,5 | 16 | 33 |
| 4855400 | 2x2x0,75 | 9.1 | 10.5 |
| 4855410 | 3x2x0,75 | 10 | 13.7 |
| 4855420 | 4x2x0,75 | 11.6 | 16.6 |
| 4855430 | 6x2x0,75 | 13.4 | 23.6 |
| N8164120 | 12x2x0,75 | 18.3 | 43.4 |
Standard:
VDE 0295, DIN 47 100
Rated Voltage Uo/U control cores:
300V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
Halogen free special compound
Core identification:
Colour coded acc. to DIN 47100
Fabric lapping:
Plastic foil
Overall shield:
Braided tinned copper wire
Outer sheath:
Halogen free special compound
Sheat colour:
Grey
Bending radius fixed:
15 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+70°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+70°C
Testing voltage:
1200V
Insulation resistance:
≥20 MOhm x km
Capacitance:
<70nF/km (Core/Core)
Halogen-free / Smoke emission:
IEC 60 754-1 & IEC 60 754-2
Flame retardant:
IEC 60332-1
