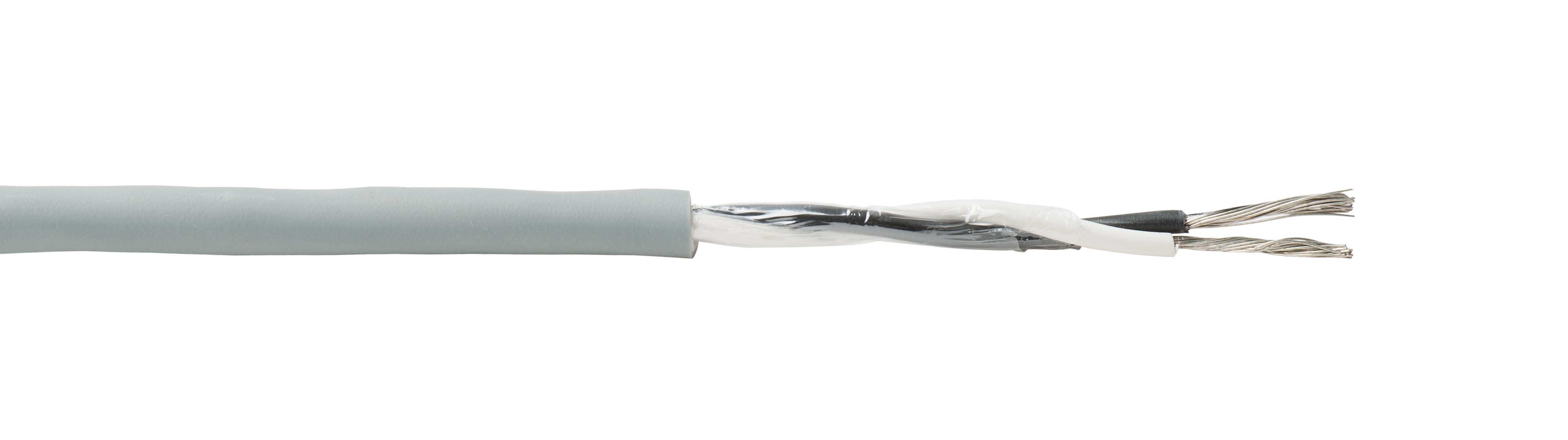

Novotronic LSZH 8471
Communication and low voltage power supply cable
- 2 (1)
- 1.47 (1)
- No (1)
| E-number | Dimension n x Ø mm | Outer diameter mm | Weight kg/100m |
| 4955000 | 1x2x1,47 | 7 | 5.4 |
Rated Voltage Uo/U control cores:
60V
Conductor class:
Klass 2 = fåtrådig (7 trådar)
Conductor material:
Copper
Core insulation:
Halogen free special compound
Core identification:
White and Black
Outer sheath:
Halogen free mix
Sheat colour:
Grey
Bending radius fixed:
15 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+70°C
Conductor resistance:
14,7 Ohm/km (20°C)
Capacitance:
108,2 pF vid 1kHz
Flame retardant:
IEC 60332-1
