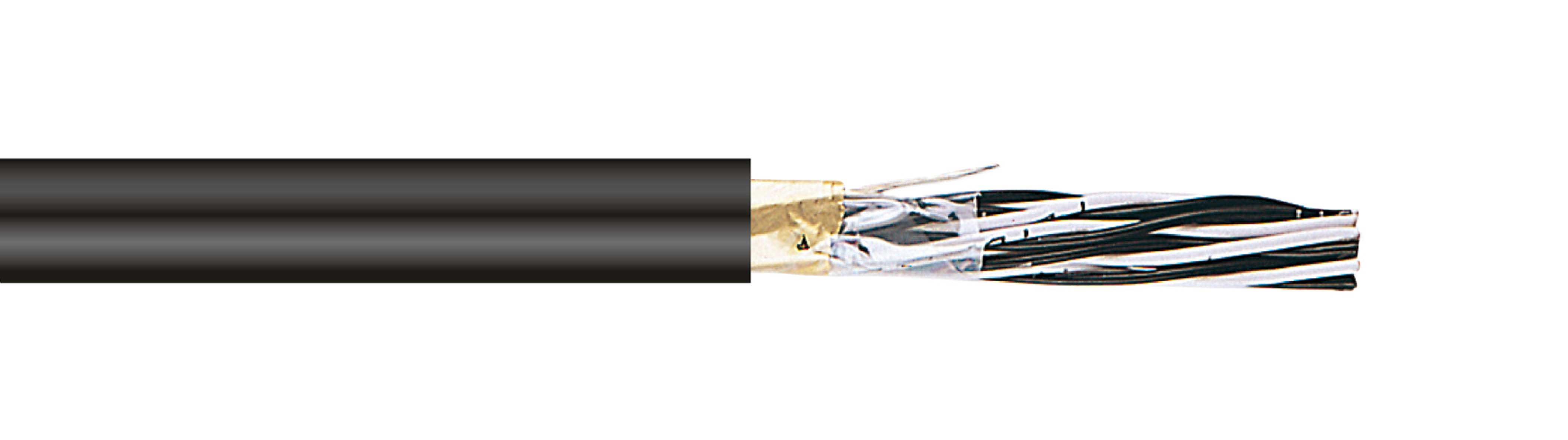

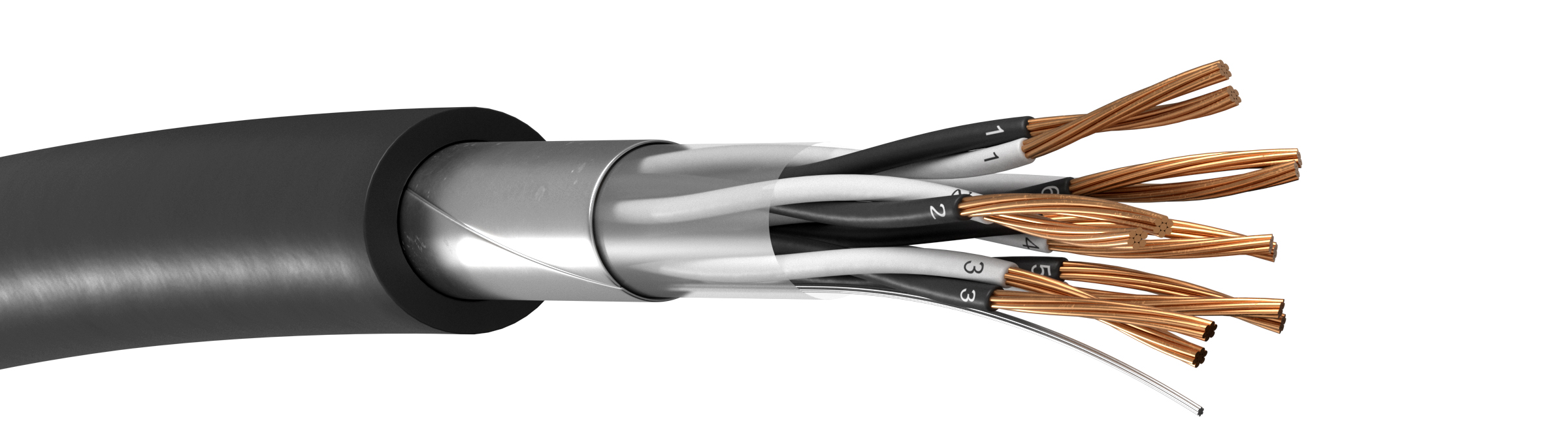

Novotronic RE-2X(St)Yv-fl
Instrument cable for digital and analog signals
- 2 (3)
- 4 (3)
- 8 (3)
- 16 (3)
- 32 (3)
- 48 (3)
- 12 (1)
- 24 (2)
- 0.5 (12)
- 0.75 (16)
- 1.3 (14)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N8063480 | 1X2X0,5 | 7.3 | 7 |
| N8063490 | 2X2X0,5 | 9.7 | 9.8 |
| N8063500 | 4X2X0,5 | 10.9 | 13 |
| N8063510 | 8X2X0,5 | 13.3 | 21 |
| N8063520 | 16X2X0,5 | 17.2 | 34 |
| N8063530 | 24x2x0,5 | 20.1 | 45.5 |
| N8063550 | 1x2x0,75 | 7.6 | 8 |
| N8063560 | 2x2x0,75 | 10.3 | 12.7 |
| N8063570 | 4x2x0,75 | 11.6 | 16.8 |
| N8063850 | 6x2x0,75 | 13.6 | 22 |
| N8063580 | 8x2x0,75 | 14.2 | 26.4 |
| N8063590 | 12x2x0,75 | 16.5 | 35.6 |
| N8063600 | 16x2x0,75 | 18.5 | 44.8 |
| N8063610 | 24x2x0,75 | 21.8 | 62 |
| N8063620 | 1x2x1,3 | 8.6 | 10.1 |
| N8063630 | 2x2x1,3 | 12 | 16.9 |
| N8063640 | 4x2x1,3 | 13.6 | 23.7 |
| N8063650 | 8x2x1,3 | 16.9 | 39 |
| N8063660 | 12x2x1,3 | 19.9 | 53.9 |
| N8063670 | 16x2x1,3 | 22.4 | 69 |
| N8063680 | 24x2x1,3 | 26.6 | 96.5 |
Standard:
EN 50288-7, VDE 0295, IEC 60228
Rated Voltage Uo/U:
300V
Conductor class:
Klass 2 = fåtrådig (7 trådar)
Conductor material:
Copper
Core insulation:
XLPE
Core identification:
A: Black, B: White with numerals
Overall shield:
Aluminum/polyester foil with tinned drain wire
Outer sheath:
PVC
Sheat colour:
Black (blue on request for intrisic circuits)
Bending radius fixed:
7,5 x cable diameter
Min operating temperature fixed:
-30°C
Max operating temperature fixed:
+70°C
Lowest installation temperature:
-5°C
Testing voltage:
1500VDC
Conductor resistance:
0,75mm²: max. 25,0 Ohm/km, 1,3mm²: max. 14,2 Ohm/km
Insulation resistance:
Min. 5 G Ohm x km
Capacitance:
max. 115 nF/km
Inductance:
approx. 1 mH/km
Flame retardant:
IEC 60332-1, IEC 60332-3-24
