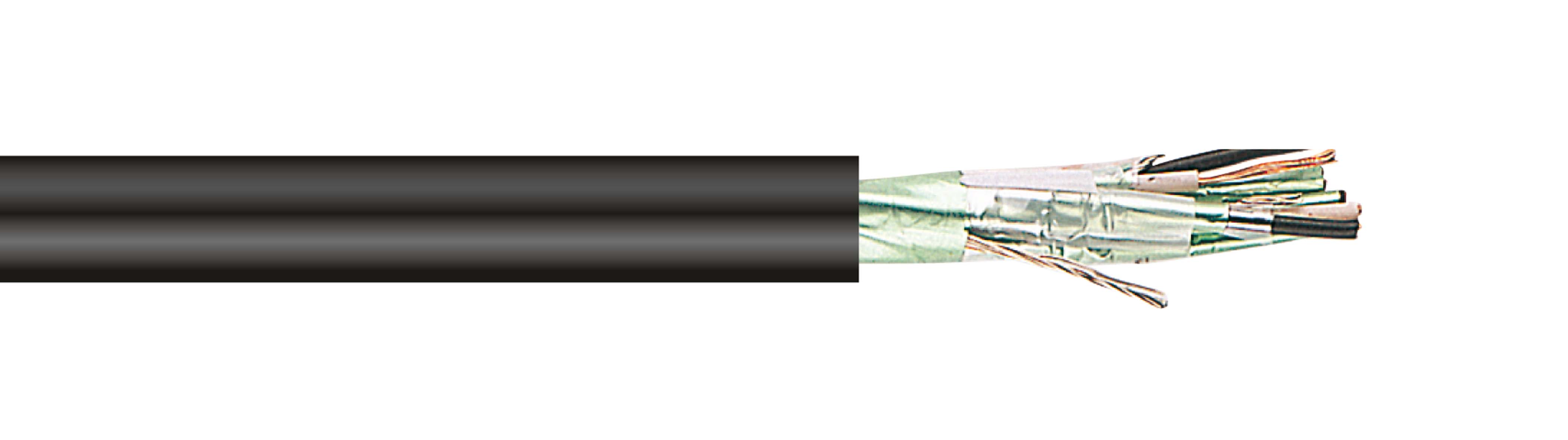

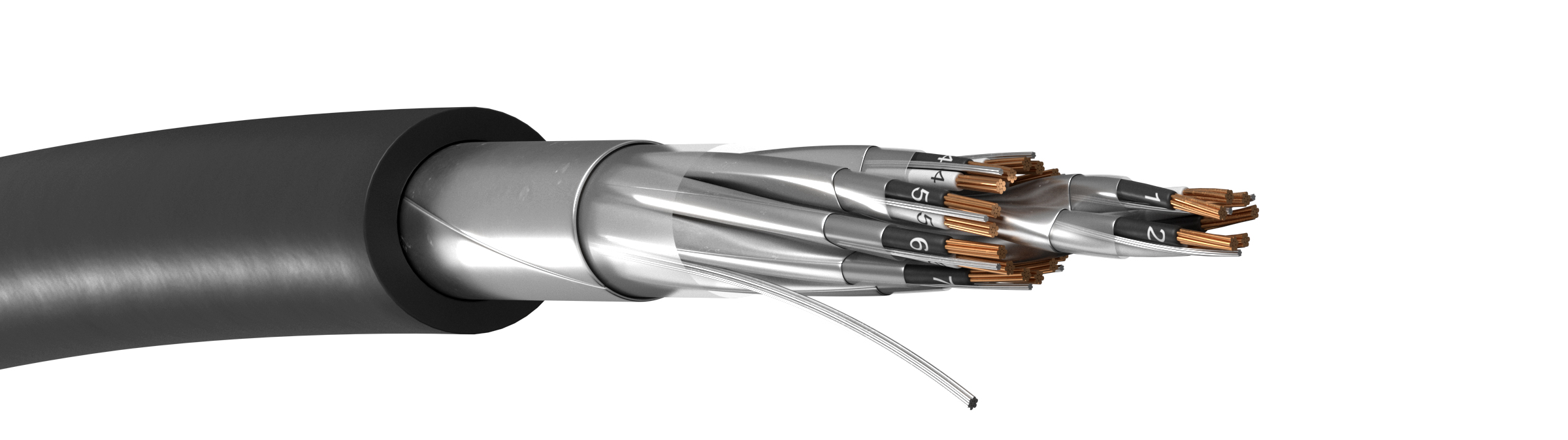

Novotronic RE-2X(St)Yv-fl PiMF
Instrument cable for digital and analog signals with shielded pairs
Standard:
EN 50288-7, VDE 0295, IEC 60228
Rated Voltage Uo/U:
300V
Conductor class:
Klass 2 = fåtrådig (7 trådar)
Conductor material:
Copper
Core insulation:
XLPE
Core identification:
A: Black, B: White with numerals
Pair screen:
Aluminium foil with tinned drainwire
Overall shield:
Aluminum/polyester foil with tinned drain wire
Outer sheath:
PVC
Sheat colour:
Black (blue on request for intrisic circuits)
Bending radius fixed:
7,5 x cable diameter
Min operating temperature fixed:
-30°C
Max operating temperature fixed:
+70°C
Testing voltage:
1500VDC
Conductor resistance:
0,75mm²: max. 25,0 Ohm/km, 1,3mm²: max. 14,2 Ohm/km
Insulation resistance:
Min. 5 G Ohm x km
Capacitance:
max. 115 nF/km
Inductance:
approx. 1 mH/km
Flame retardant:
IEC 60332-1, IEC 60332-3-24
