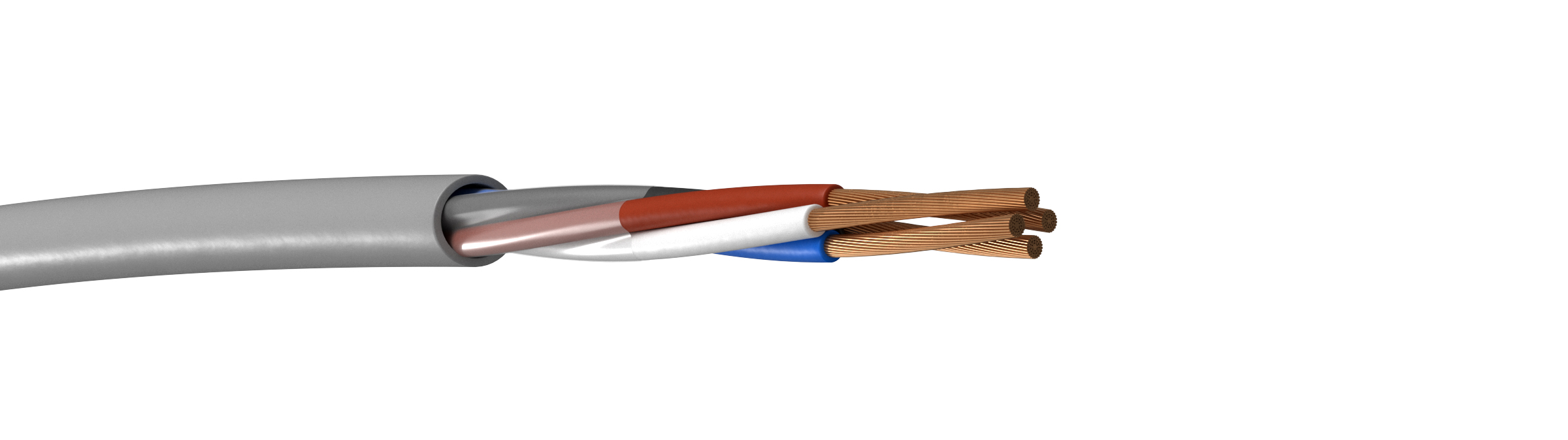

Sensor FR

Flexible sensor cable
Create product sheet (PDF)
Questions/Order
  • 3 (1)
  • 4 (2)
  • 0.35 (1)
  • 0.25 (1)
  • 0.34 (1)
  • No (3)
E-numberDimension n x mm²Outer diameter mmWeight kg/100m
N83372403x0,3552.9
N83372504x0,254.42.5
N83372604x0,344.93.9
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
3 cores Brown+Blue+Black
4 cores Brown+White+Blue+Black
5 cores Brown+White+Blue+Black+Green/yel
Protective conductor:
-
Outer sheath:
PVC
Sheat colour:
Grey
Bending radius fixed:
6 x cable diameter
Min operating temperature fixed:
-30°C
Max operating temperature fixed:
+80°C
Lowest installation temperature:
-5°C
Testing voltage:
1500V
Flame retardant:
IEC 60332-1
