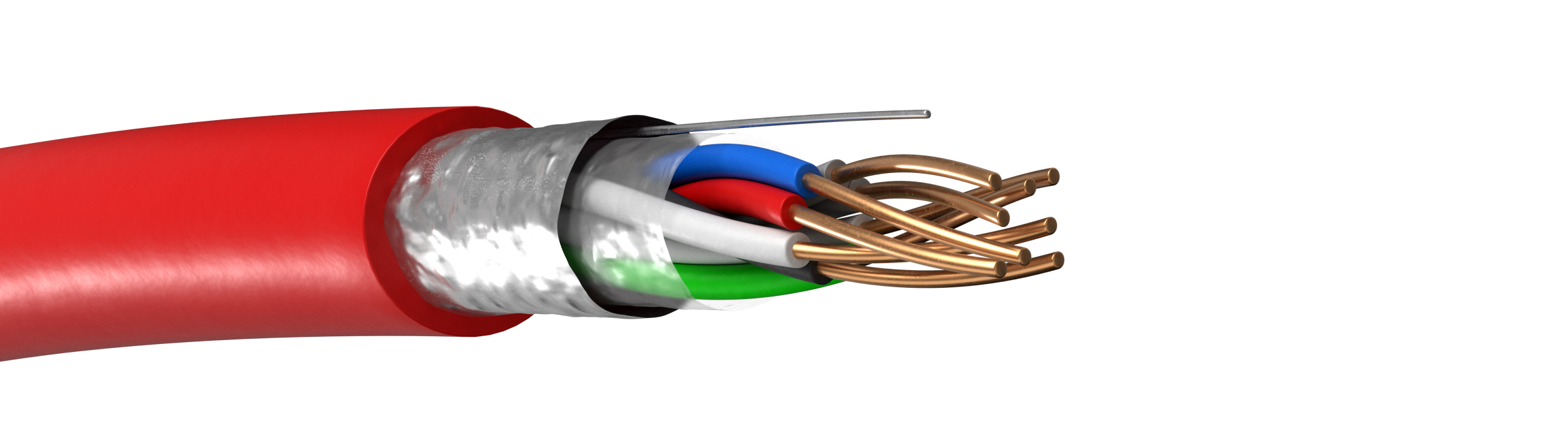

JE-H(St)H PH 120
Fire resistant halogen free foil shielded telecommunication cable
- 2 (1)
- 4 (1)
- 8 (1)
- No (3)
| E-number | Dimension n x Ø mm | Outer diameter mm | Weight kg/100m |
| 4855580 | 1x2x0,8 | 4.9 | 3.5 |
| 4855590 | 2x2x0,8 | 5.5 | 5.5 |
| 4855600 | 4x2x0,8 | 8 | 9.5 |
Rated Voltage Uo/U:
300V
Conductor class:
Class 1 = solid wire
Conductor material:
Copper
Core insulation:
Ceramic silicone rubber
Core identification:
Colour coded
Fabric lapping:
Flame retardant fabric
Overall shield:
Aluminum/polyester foil with tinned drain wire
Outer sheath:
Halogen free special compound
Sheat colour:
Red
Min operating temperature fixed:
-30°C
Max operating temperature fixed:
+90°C
Lowest installation temperature:
-5°C
Testing voltage:
Core/Core 500V, Core/Screen 2000V
Capacitance:
120 nF/km at 800Hz
Halogen-free / Smoke emission:
IEC 60 754-1 & IEC 60 754-2
Halogen-free acc. to:
IEC 60754
Smoke emission:
IEC 61034-2
Fire resistant:
IEC 60331-21, EN 50200(PH120)
Flame retardant:
IEC 60332-3-24
