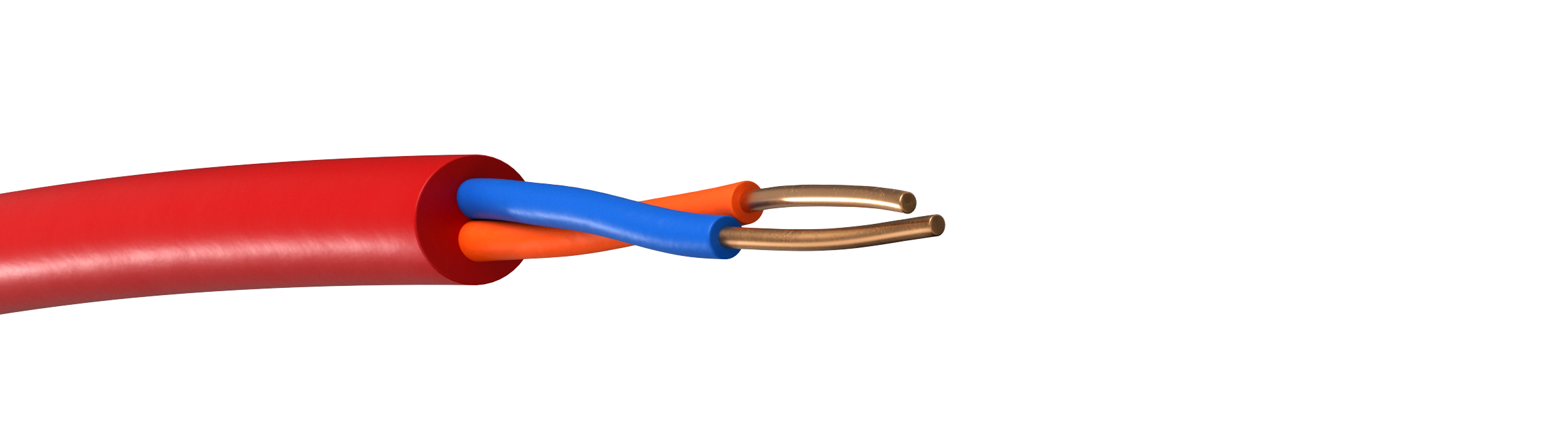

Novosafe AS FE 180 / PH90-ELQYB
Fire resistant halogen free fire alarm cable
Rated Voltage Uo/U:
225V
Conductor class:
Class 1 = solid wire
Conductor material:
Copper
Core insulation:
Mica tape and halogen free special compound
Core identification:
2x1 Blue+Orange, 10x2x1 White+Blue, White+Orange, White+Green, White+Brown, White+Grey, Red+Blue, Red+Orange, Red+Green, Red+Brown, Red+Grey
Fabric lapping:
Polyester
Outer sheath:
Halogen free special compound
Sheat colour:
Red
Bending radius fixed:
10 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Lowest installation temperature:
-5°C
Testing voltage:
1500VAC / 2250VDC
Pair resistance:
48 Ohm/km
Capacitance:
120 nF/km (1kHz)
Inductance:
0,7 mH/km
Halogen-free acc. to:
IEC 60754-2
Smoke emission:
IEC 61034-2
Fire resistant:
PH90 (90 min, 830°C), EN 50200, IEC 60331-11, -21, -23
Flame retardant:
IEC 60332-3-22
