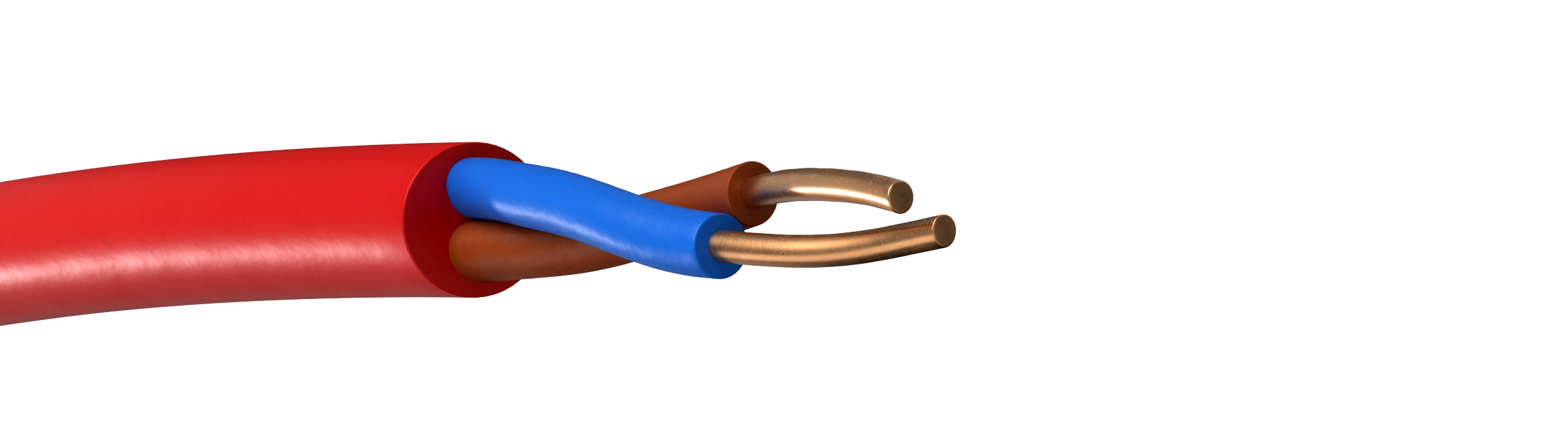

Novosafe Fire 300/500V Red
Fire resistant halogen free installation cable
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 1 = solid wire
Conductor material:
Copper
Core insulation:
Ceramic silicone rubber
Core identification:
Blue and Brown
Outer sheath:
Halogen free special compound
Sheat colour:
Red
Bending radius fixed:
10 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Lowest installation temperature:
-10°C
Testing voltage:
2000VAC / 5000VDC
Halogen-free acc. to:
IEC 60754-2
Smoke emission:
IEC 61034-2
Fire resistant:
EN 50200(PH90), IEC-60331-1, -2, -11, -21, -23,
Flame retardant:
IEC 60332-3-22
