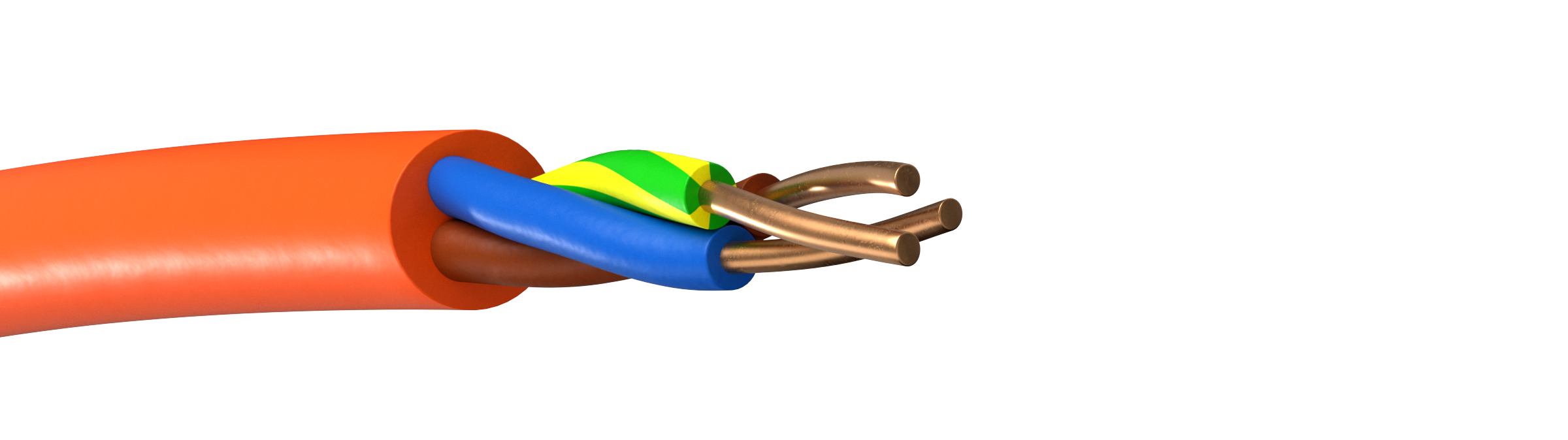

Novosafe Fire 450/750V

Fire resistant halogen free installation cable
  • Fire resistant
  • Halogen free
  • Flame retardant
  • No corrosive gases
  • Low smoke
Create product sheet (PDF)
Questions/Order

Fire resistant, hagen free installation cable. For signalling/fire alarm systems, control systems and other safety ensuring circuits. In case of fire the cable remains functioning for at least 90 minutes(PH90). During burning the cable does not emit corrosive gases or dense smoke. Cables are suitable for fixed installation inside building. For limited use outdoors if protected.

We reserve the right to make changes

Rated Voltage Uo/U:
450/750V
Conductor class:
≤2,5mm² Class 1 = solid wire / ≥6mm² Class 2 = stranded wires
Conductor material:
Copper
Core insulation:
Ceramic silicone rubber
Core identification:
2 cores Brown+Blue
3 cores Brown+Blue+Green/Yellow
4 cores Brown+Black+Grey+Green/Yellow
5 cores Brown+Black+Grey+Blue+Green/Yellow
≥7 cores Black with numerals
Protective conductor:
Yellow/Green
Fabric lapping:
Polyester
Outer sheath:
Halogen free special compound
Sheat colour:
Orange
Bending radius fixed:
10 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Lowest installation temperature:
-10°C
Testing voltage:
2000VAC / 5000VDC
Halogen-free acc. to:
IEC 60754-2
Smoke emission:
IEC 61034-2
Fire resistant:
EN 50200(PH90), IEC-60331-1, -2, -11, -21, -23,
Flame retardant:
IEC 60332-3-22
