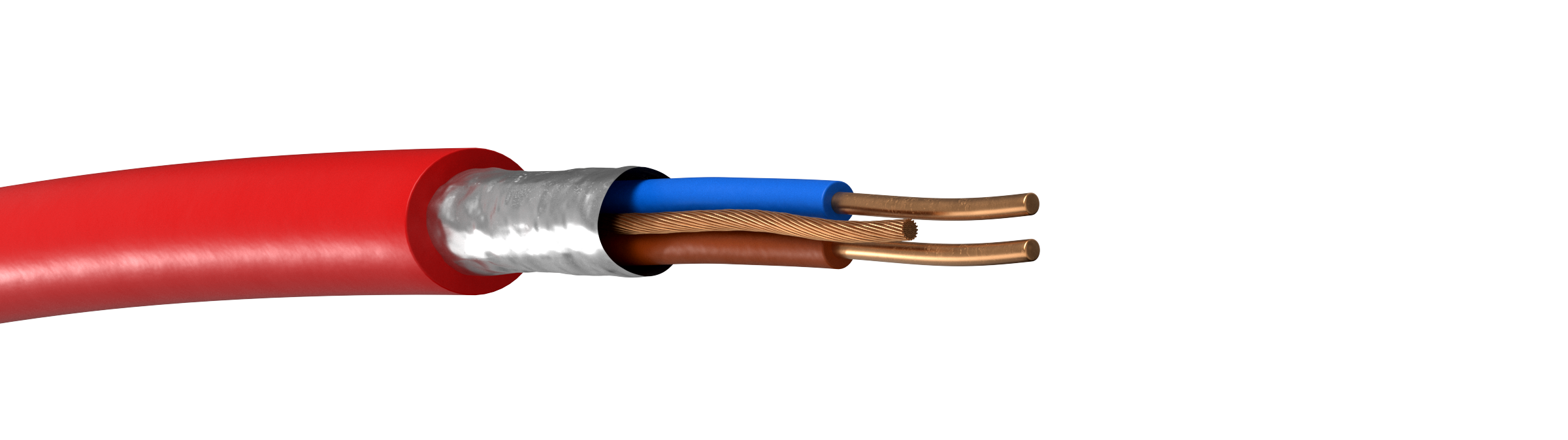

Novosafe Fire S(St)
Fire resistant shielded halogen free installation and fire alarm cable
- 2 (3)
- 4 (1)
- 7 (1)
- 12 (1)
- 19 (1)
- 1 (1)
- 1.5 (5)
- 2.5 (1)
- No (7)
| E-number | Dimension n x mm² | Conductor colour | Outer diameter mm | Weight kg/100m |
| 0477080 | 2x1 | Red | 7.1 | 6.3 |
| 0477090 | 2x1,5 | Red | 7.9 | 7.8 |
| 2x2,5 | 9.5 | 11.5 | ||
| 4x1,5 | 9.5 | 13.2 | ||
| 7x1,5 | 11.3 | 20.3 | ||
| 12x1,5 | 14.4 | 32 | ||
| 19x1,5 | 18.1 | 52 |
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 1 = solid wire
Conductor material:
Copper
Core insulation:
Ceramic silicone rubber
Core identification:
2 cores Brown+Blue
4 cores Brown+Black+Grey+Blue
7-19 cores black numbers on black base
4 cores Brown+Black+Grey+Blue
7-19 cores black numbers on black base
Fabric lapping:
Polyester
Overall shield:
Aluminum/polyester foil with tinned drain wire 0,75mm²
Outer sheath:
Halogen free special compound
Sheat colour:
Orange or Red
Bending radius fixed:
10 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Lowest installation temperature:
-10°C
Testing voltage:
2000VAC / 5000VDC
Halogen-free acc. to:
IEC 60754-2
Smoke emission:
IEC 61034-2
Fire resistant:
EN 50200(PH90), IEC-60331-1, -2, -11, -21, -23,
Flame retardant:
IEC 60332-3-22
