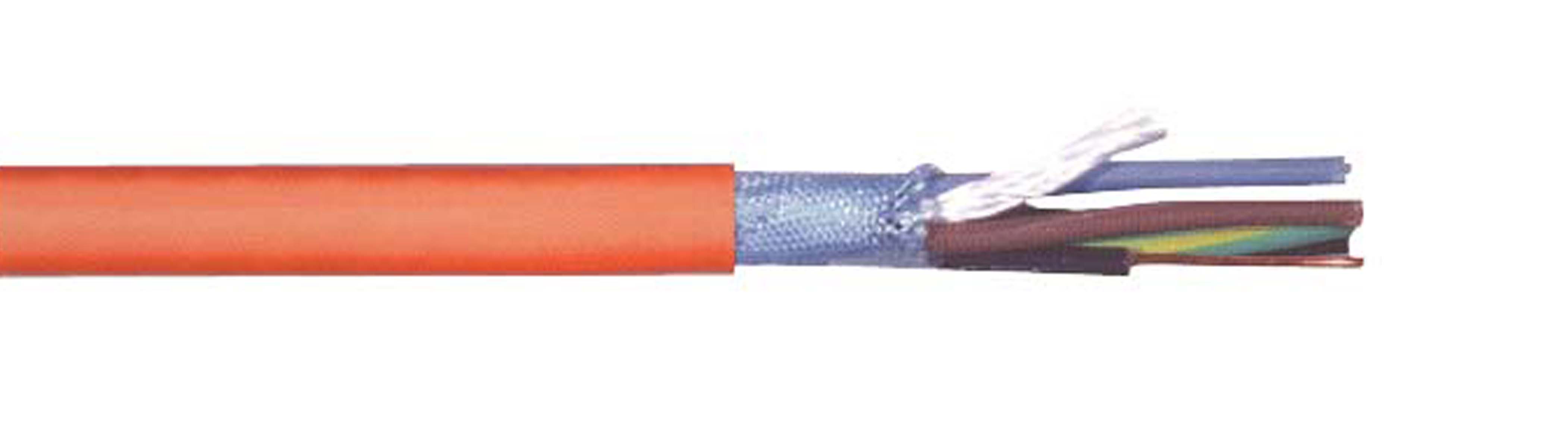

Novosafe NHXH FE 180 / E90 0,6/1 kV
Fire resistant halogen free power cable
- 5 (5)
- 4 (6)
- 3 (1)
- 12 (1)
- 10 (1)
- 16 (1)
- 25 (2)
- 35 (3)
- 50 (2)
- 70 (1)
- 95 (1)
- 120 (1)
- 2.5 (1)
- Yes (13)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N8068050 | 5G10 | 22 | 80.7 |
| N8069050 | 5G16 | 25.2 | 114.5 |
| N8069140 | 4G25 | 27.2 | 142.2 |
| N8069150 | 5G25 | 29.8 | 176.5 |
| N8069230 | 3G35 | 26.8 | 143 |
| N8069240 | 4G35 | 29.7 | 185.8 |
| N8069250 | 5G35 | 32.9 | 231 |
| N8069340 | 4G50 | 33.5 | 245.3 |
| N8069350 | 5G50 | 38.1 | 309 |
| N8069440 | 4G70 | 38.9 | 244 |
| N8069540 | 4G95 | 43.8 | 466.5 |
| N8069640 | 4G120 | 48 | 579.2 |
| 12G2,5 | 26.1 | 66 |
Standard:
VDE 0207, 0266, 0472, IEC 331-1, -3, DIN4102
Rated Voltage Uo/U:
0,6/1kV
Conductor class:
≤16mm² Class 1 = solid wire / ≥25mm² Class 2 = stranded wires
Conductor material:
Copper
Core insulation:
Halogen free special compound
Core identification:
Black with white numerals, ≤5 cores: Colour coded
Protective conductor:
Yellow/Green
Inner sheath material:
Halogen free specialmix
Outer sheath:
Halogen free special compound
Sheat colour:
Orange
Bending radius fixed:
12 x cable diameter
Min operating temperature fixed:
-30°C
Max operating temperature fixed:
+70°C
Testing voltage:
4000V
Insulation resistance:
≥20 MOhm x km
Fire resistant:
IEC 60331 (E90)
Flame retardant:
IEC 60332-3-24
