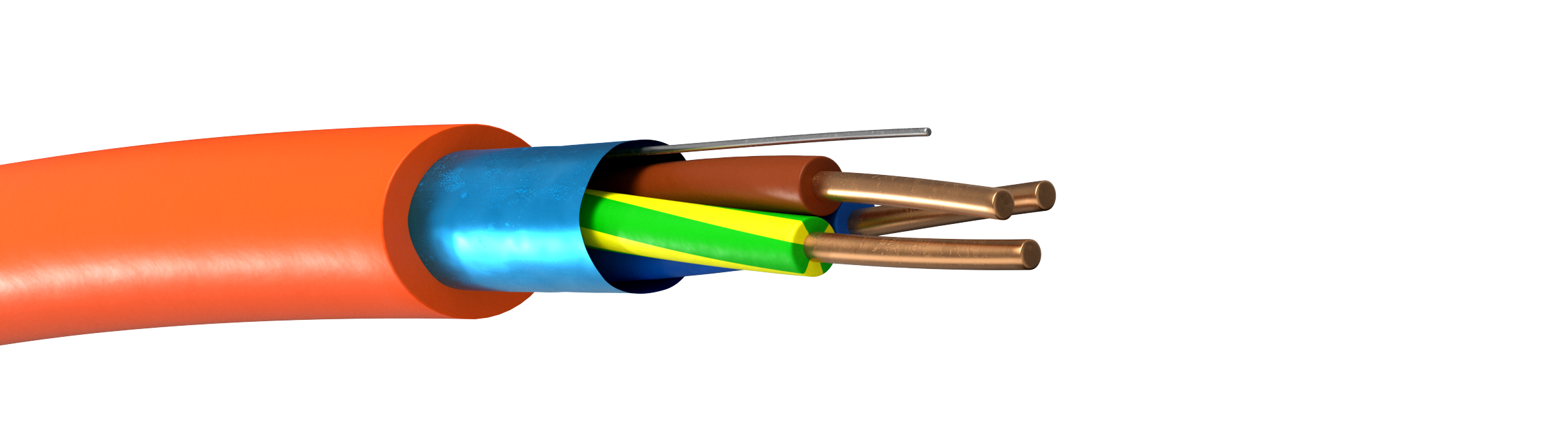

Novosafe S(St) FE 180 / PH90 450/750V

Fire resistant shielded installation cable
Create product sheet (PDF)
Questions/Order
  • 3 (2)
  • 5 (2)
  • 1.5 (1)
  • 1 (1)
  • 2.5 (2)
  • Yes (4)
E-numberDimension n x mm²Outer diameter mmWeight kg/100m
04771703G1,59.49.9
04771805G1,511.216.1
3G2,510.815
5G2,512.423.5
Rated Voltage Uo/U:
450/750V
Conductor class:
Class 1 = solid wire
Conductor material:
Copper
Core insulation:
Ceramic silicone rubber
Core identification:
3 cores Brown+Blue+Green/Yellow
4 cores Brown+Black+Grey+Green/Yellow
5 cores Brown+Black+Grey+Blue+Green/Yellow
Protective conductor:
Yellow/Green
Overall shield:
Aluminum/polyester foil with tinned drain wire 0,75mm²
Outer sheath:
Halogen free special compound
Sheat colour:
Orange
Bending radius fixed:
10 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Lowest installation temperature:
-10°C
Testing voltage:
2000VAC / 5000VDC
Halogen-free acc. to:
IEC 60754-2
Smoke emission:
IEC 61034-2
Fire resistant:
EN 50200(PH90), IEC-60331-1, -2, -11, -21, -23,
Flame retardant:
IEC 60332-3-22
