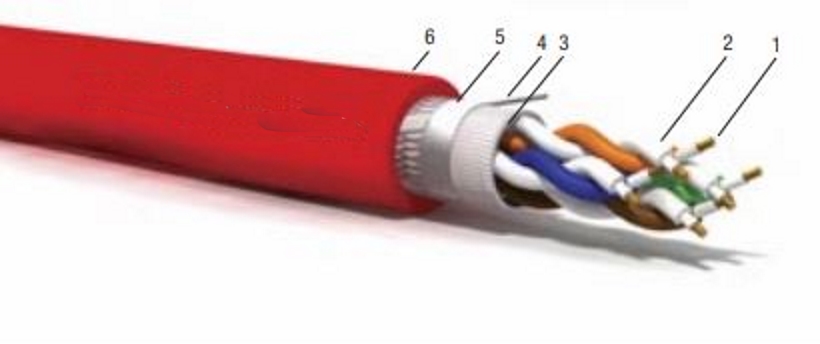

S/FTP CAT5E-PH120
Fire resistant shielded data cable
Conductor class:
Solid wire (AWG22/1)
Core insulation:
Silicone
Core identification:
Colour coded
Protective conductor:
-
Fabric lapping:
Flame retardant fabric
Overall shield:
Aluminum foil+tinned drain wire and braided tinned copper wire
Outer sheath:
Halogen free special compound
Sheat colour:
Red
Bending radius fixed:
8 x cable diameter
Max operating temperature fixed:
+70°C
Lowest installation temperature:
0°C
Impedance:
100 Ohm at 1-100 Hz
Halogen-free acc. to:
IEC 60754
Smoke emission:
IEC 61034-2
Fire resistant:
IEC 60331-21, EN 50200(PH120)
Burning behavior CPR:
B2ca-s1a,d1,a1
Flame retardant:
IEC 60332-1
