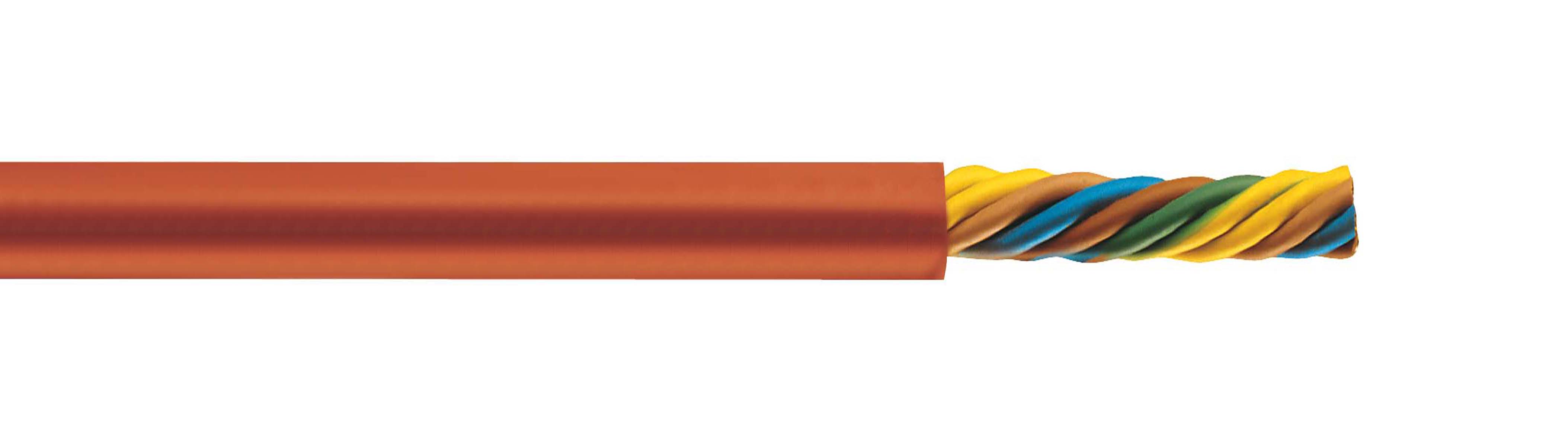

SiHF (H05SS-F)
Heat resistant connecting cable
Standard:
IEC 60228 cl. 5
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Tinned Copper
Core insulation:
Silicone
Core identification:
2-5 ledare Färgmärkt, ≥6 ledare Svart med vit nummermärkning
Protective conductor:
Yellow/Green
Outer sheath:
Silicone
Sheat colour:
Redbrown
Bending radius fixed:
4 x cable diameter
Bending radius moved:
15 x cable diameter
Min operating temperature fixed:
-60°C
Max operating temperature fixed:
+180°C
Testing voltage:
2000V
Halogen-free / Smoke emission:
IEC 60 754-1 & IEC 60 754-2
Flame retardant:
IEC 60332-1
