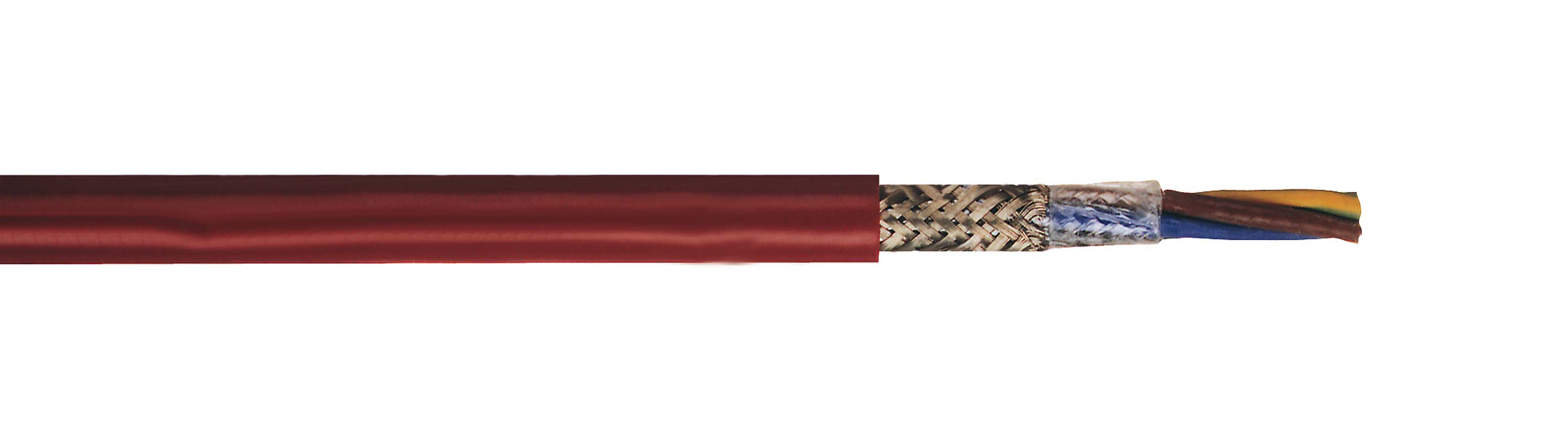

SiHF / Cu / Si
Heat resistant copper shielded (EMC) connecting cable
- 2 (3)
- 3 (3)
- 4 (9)
- 5 (3)
- 7 (3)
- 0.75 (5)
- 1 (5)
- 1.5 (5)
- 2.5 (1)
- 4 (1)
- 6 (1)
- 10 (1)
- 16 (1)
- 25 (1)
- No (3)
- Yes (17)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N9042020 | 2x0,75 | 7.4 | 7.1 |
| N9042030 | 3G0,75 | 7.8 | 9.8 |
| N9042040 | 4G0,75 | 8.6 | 11.4 |
| N9042050 | 5G0,75 | 9.3 | 13.6 |
| N9042070 | 7G0,75 | 10 | 16.4 |
| N9043020 | 2x1,0 | 7.8 | 7.8 |
| N9043030 | 3G1,0 | 8.2 | 10.7 |
| N9043040 | 4G1,0 | 9.3 | 12.8 |
| N9043050 | 5G1,0 | 10 | 15.3 |
| N9043070 | 7G1,0 | 10.7 | 18.6 |
| N9044020 | 2x1,5 | 8.8 | 10.7 |
| N9044030 | 3G1,5 | 9.2 | 12.9 |
| N9044040 | 4G1,5 | 10 | 16 |
| N9044050 | 5G1,5 | 10.8 | 18.4 |
| N9044070 | 7G1,5 | 11.6 | 23.5 |
| 4G2,5 | 11.4 | 22.1 | |
| 4G4 | 13.4 | 32.5 | |
| 4G6 | 18.1 | 58.7 | |
| 4G10 | 24.1 | 97.8 | |
| 4G16 | 26.2 | 128.5 | |
| 4G25 | 35 | 196.6 |
Standard:
VDE 0293, 0295, IEC 60754.1
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Tinned Copper
Core insulation:
Silicone
Core identification:
2-5 cores: Colour coded acc to HD308S2, ≥6 cores: Black with numerals
Protective conductor:
Yellow/Green
Overall shield:
Braided tinned copper wire
Outer sheath:
Silicone
Sheat colour:
Redbrown
Bending radius fixed:
20 x cable diameter
Min operating temperature fixed:
-50°C
Max operating temperature fixed:
+180°C
Testing voltage:
2000V
Insulation resistance:
≥200 MOhm x km
Flame retardant:
IEC 60332-1
