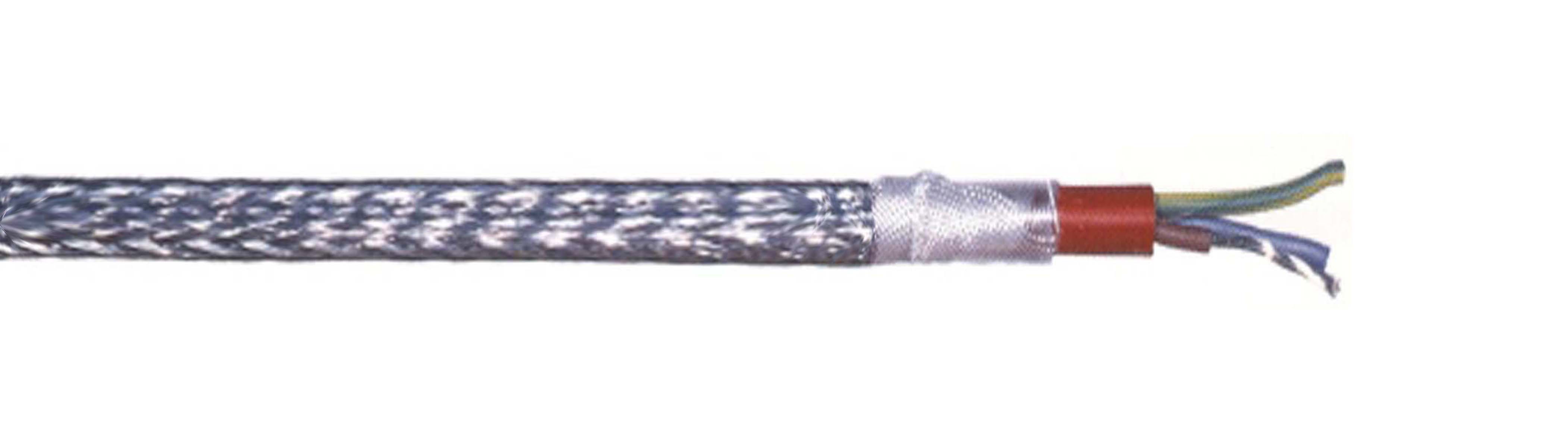

SiHF-GLP
Heat resistant steelwire armoured connecting cable
- 2 (4)
- 3 (5)
- 4 (7)
- 5 (5)
- 7 (4)
- 12 (1)
- 0.75 (4)
- 1 (3)
- 1.5 (4)
- 2.5 (5)
- 4 (2)
- 6 (2)
- 10 (1)
- No (4)
- Yes (22)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N9020020 | 2x0,75 | 7.5 | 5.8 |
| N9020030 | 3G0,75 | 7.8 | 7.5 |
| N9020040 | 4G0,75 | 9 | 9 |
| N9020050 | 5G0,75 | 9.8 | 11 |
| N9020070 | 7G0,75 | 10.7 | 17.7 |
| N9021020 | 2x1,0 | 7.6 | 7 |
| N9021030 | 3G1,0 | 8.5 | 8.5 |
| N9021040 | 4G1,0 | 9.3 | 10 |
| N9021050 | 5G1,0 | 10.4 | 15.5 |
| N9021070 | 7G1,0 | 11.1 | 19.8 |
| N9022020 | 2x1,5 | 8.6 | 9.5 |
| N9022030 | 3G1,5 | 9.2 | 11.5 |
| N9022040 | 4G1,5 | 10 | 14.5 |
| N9022050 | 5G1,5 | 10.8 | 17 |
| N9022070 | 7G1,5 | 12.1 | 19.8 |
| N9022090 | 12G1,5 | 15.5 | 32.8 |
| N9023020 | 2x2,5 | 10.2 | 15.5 |
| N9023030 | 3G2,5 | 11 | 18 |
| N9023040 | 4G2,5 | 12 | 22 |
| N9023050 | 5G2,5 | 13 | 27 |
| N9023070 | 7G2,5 | 14 | 38 |
| N9024030 | 3G4 | 12.5 | 26.5 |
| N9024040 | 4G4 | 14.4 | 35 |
| N9025040 | 4G6 | 17.7 | 40 |
| N9025050 | 5G6 | 19.2 | 52 |
| N9025060 | 4G10 | 21.8 | 92.5 |
Standard:
VDE 0295
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Tinned Copper
Core insulation:
Silicone
Core identification:
≤5 cores: Colour coded, ≥7 cores: Black with numerals
Protective conductor:
Yellow/Green
Inner sheath material:
Silicone
Outer sheath:
Braided zincplated steel wire
Bending radius fixed:
20 x cable diameter
Min operating temperature fixed:
-60°C
Max operating temperature fixed:
+180°C
Testing voltage:
2000V
Flame retardant:
IEC 60332-1
