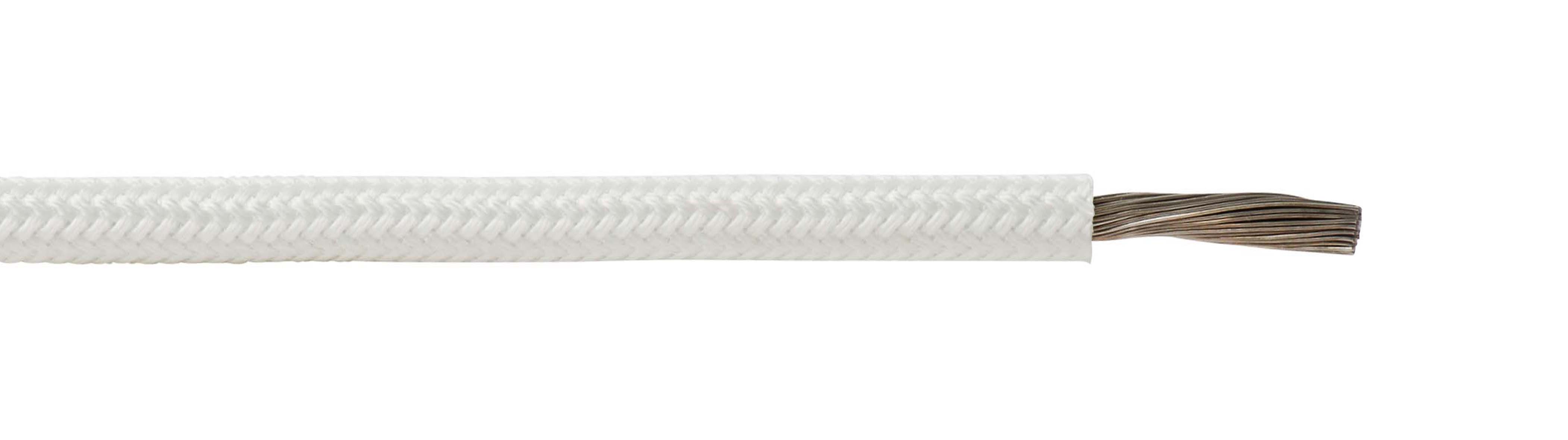

RHH (H05SJ-K)
Heat resistant silicone insulated single core
Standard:
Cenelec HD383, 22-3 S3, IEC 245-3, VDE 0250
Approvals:
0,75-16,0mm² HAR approval, 25,0-150,0 mm² VDE
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Tinned Copper
Core insulation:
Silicone
Outer sheath:
Laquered glassfibre braid
Sheat colour:
White
Bending radius fixed:
15 x cable diameter
Min operating temperature fixed:
-60°C
Max operating temperature fixed:
+180°C
Testing voltage:
2000V
Insulation resistance:
>10 MOhm x km
Max temperature at conductor:
+180°C
Halogen-free / Smoke emission:
IEC 60 754-1 & IEC 60 754-2
Flame retardant:
IEC 60332-1
