RH/SIF

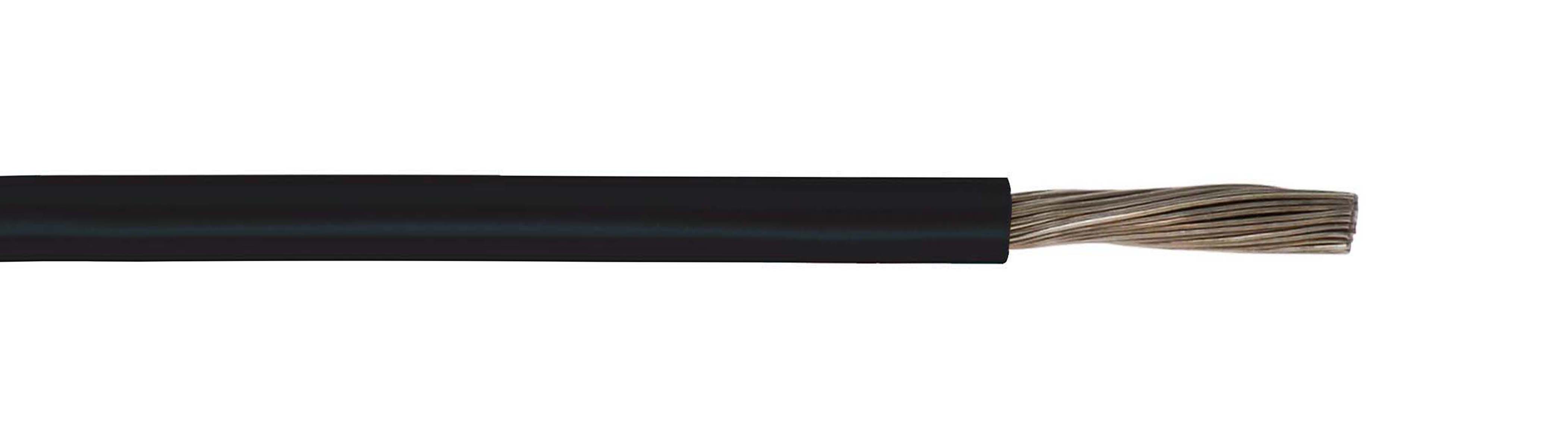

Heat resistant silicone insulated single core
- No (33)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m | Colour | Length |
| N9030012 | 1x0,25 | 1.8 | 0.6 | Yellow | 100 meters |
| N9030072 | 1x0,25 | 1.8 | 0.6 | Blue | 100 meters |
| N9031012 | 1x0,5 | 2.1 | 0.9 | White | 100 meters |
| N9031022 | 1x0,5 | 2.1 | 0.9 | Black | 100 meters |
| N9032112 | 1x0,75 | 2.4 | 1.1 | White | 100 meters |
| N9032122 | 1x0,75 | 2.4 | 1.1 | Black | 100 meters |
| N9032172 | 1x0,75 | 2.4 | 1.1 | Blue | 100 meters |
| N9032192 | 1x0,75 | 2.4 | 1.1 | Yellow/Green | 100 meters |
| N9033022 | 1x1,0 | 2.5 | 1.4 | Black | 100 meters |
| N9034312 | 1x1,5 | 2.8 | 2 | White | 100 meters |
| N9034322 | 1x1,5 | 2.8 | 2 | Black | 100 meters |
| N9034372 | 1x1,5 | 2.8 | 2 | Blue | 100 meters |
| N9034382 | 1x1,5 | 2.8 | 2 | Brown | 100 meters |
| N9034392 | 1x1,5 | 2.8 | 2 | Yellow/Green | 100 meters |
| N9035412 | 1x2,5 | 3.4 | 3.2 | White | 100 meters |
| N9035422 | 1x2,5 | 3.4 | 3.2 | Black | 100 meters |
| N9035472 | 1x2,5 | 3.4 | 3.2 | Blue | 100 meters |
| N9035492 | 1x2,5 | 3.4 | 3.2 | Yellow/Green | 100 meters |
| N9035512 | 1x4 | 4.2 | 4.9 | White | 100 meters |
| N9035572 | 1x4 | 4.2 | 4.9 | Black | 100 meters |
| N9035592 | 1x4 | 4.2 | 4.9 | Yellow/Green | 100 meters |
| N9035610 | 1x6 | 5.2 | 7.1 | Yellow/Green | 100 meters |
| N9035622 | 1x6 | 5.2 | 7.1 | Black | 100 meters |
| N9035710 | 1x10 | 7 | 12.4 | Black | - |
| N9035800 | 1x16 | 8 | 18.8 | Black | - |
| N9035910 | 1x25 | 9.9 | 29.6 | Black | - |
| N9036010 | 1x35 | 11.2 | 40 | Black | - |
| N9036110 | 1x50 | 13.8 | 57 | Black | - |
| N9036210 | 1x70 | 14.8 | 76.7 | Black | - |
| N9036310 | 1x95 | 18.2 | 103 | Black | - |
| N9036410 | 1x120 | 19.2 | 130 | Black | - |
| N9036510 | 1x150 | 21.9 | 156.3 | Black | - |
| N9036610 | 1x185 | 24.9 | 191.5 | Black | - |
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
Silicone
Core identification:
Black
Bending radius fixed:
15 x cable diameter
Min operating temperature fixed:
-60°C
Max operating temperature fixed:
+180°C
Testing voltage:
2000V
Halogen-free / Smoke emission:
IEC 60 754-1 & IEC 60 754-2
Flame retardant:
IEC 60332-1
