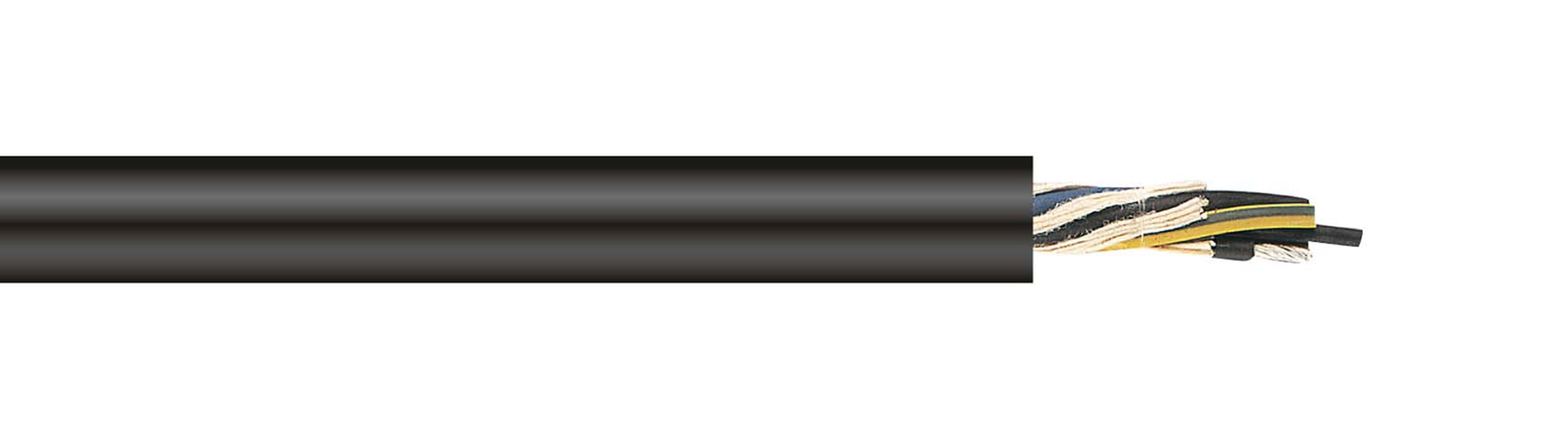

Novoflex HEAVY (K) NSHTÖU-J/90
Neoprene rubber sheathed reeling cable
- 4 (14)
- 5 (8)
- 7 (2)
- 12 (2)
- 18 (2)
- 24 (2)
- 30 (2)
- 42 (1)
- 8 (1)
- 19 (1)
- 25 (1)
- 45 (1)
- 50 (1)
- 1.5 (8)
- 2.5 (12)
- 4 (2)
- 6 (2)
- 10 (2)
- 16 (2)
- 25 (2)
- 35 (2)
- 50 (1)
- 70 (1)
- 95 (1)
- 120 (1)
- 150 (1)
- 185 (1)
- Yes (38)
| E-number | Dimension n x mm² | Outer dimensions (min - max) mm | Weight kg/100m |
| N8933040 | 4G1,5 | 11,5 - 15,0 | 234 |
| N8933050 | 5G1,5 | 12,5 - 16,0 | 275 |
| N8933070 | 7G1,5 | 15,5 - 19,0 | 414 |
| N8933120 | 12G1,5 | 18,0 - 23,0 | 579 |
| N8933180 | 18G1,5 | 21,0 - 25,5 | 801 |
| N8933240 | 24G1,5 | 24,0 - 28,5 | 1024 |
| N8933300 | 30G1,5 | 26,0 - 30,5 | 1228 |
| N8933420 | 42G1,5 | 32,0 - 36,5 | 1634 |
| N8934040 | 4G2,5 | 14,5 - 18,0 | 368 |
| N8934050 | 5G2,5 | 15,0 - 18,5 | 426 |
| N8934070 | 7G2,5 | 17,5 - 21,0 | 577 |
| N8934080 | 8G2,5 | 20,0 - 23,5 | 700 |
| N8934120 | 12G2,5 | 21,0 - 25,5 | 775 |
| N8934180 | 18G2,5 | 24,0 - 28,5 | 1195 |
| N8938000 | 19G2,5+5x1,5C* | 29,0 - 34,0 | 1570 |
| N8934240 | 24G2,5 | 29,0 - 33,5 | 1566 |
| N8938100 | 25G2,5+5x1,5C* | 31,0 - 36,0 | 1684 |
| N8934300 | 30G2,5 | 31,0 - 35,5 | 1743 |
| N8934450 | 45G2,5 | 42,5 - 47,0 | 3070 |
| N8934500 | 50G2,5 | 44,5 - 49,0 | 3200 |
| N8935040 | 4G4 | 16,0 - 19,5 | 551 |
| N8935060 | 4G6 | 17,5 - 21,0 | 591 |
| N8935100 | 4G10 | 22,5 - 27,0 | 973 |
| N8935160 | 4G16 | 26,0 - 30,5 | 1387 |
| N8935250 | 4G25 | 31,5 - 36,0 | 2026 |
| N8935350 | 4G35 | 34,5 - 39,0 | 2568 |
| N8935500 | 4G50 | 40,0 - 45,5 | 3594 |
| N8935700 | 4G70 | 43,0 - 48,5 | 4637 |
| N8935950 | 4G95 | 52,5 - 58,0 | 6470 |
| N8935960 | 4G120 | 58,0 - 64,5 | 7990 |
| N8935970 | 4G150 | 63,0 - 69,5 | 9706 |
| N8935980 | 4G185 | 68,5 - 75,0 | 9730 |
| N8936040 | 5G4 | 17,5 - 21,0 | 615 |
| N8936060 | 5G6 | 19,0 - 23,5 | 753 |
| N8936100 | 5G10 | 24,5 - 29,0 | 1188 |
| N8936160 | 5G16 | 28,0 - 32,5 | 1666 |
| N8936250 | 5G25 | 33,5 - 38,0 | 2530 |
| N8936350 | 5G35 | 38,0 - 43,5 | 3420 |
Standard:
DIN VDE 0295 cl. 5, VDE 0250
Rated Voltage Uo/U:
0,6/1kV
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
Rubber
Core identification:
Numerals, ≤5 cores: Colour coded
Protective conductor:
Yellow/Green
Inner sheath material:
Neopren®
Textile weave:
Vulcanised between inner and outer sheath
Outer sheath:
Neoprene®
Sheat colour:
Black
Bending radius fixed:
6 x cable diameter
Bending radius moved:
6 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-25°C
Max operating temperature moved:
+80°C
Testing voltage:
2500V
Max temperature at conductor:
+90°C
Flame retardant:
IEC 60332-1
